Indoor Outdoor LED Mesh Flexible Curtain Screen Display P10.416 Input AC 220V / 110V
Indoor Outdoor LED Mesh Flexible Curtain Screen Display P10.416 Input AC 220V / 110V
Specifications
Brand Name :
PRT
Model Number :
P 10.416 curtain
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen Guangdong China
MOQ :
5 sq.m
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
flight case (6 panel into a case)
Item mode :
P 10.416 mm mesh screen
Panel size :
W 500 mm x H 1000 mm
View angle :
Horizontal 140°, Vertical 120°
input voltage :
AC 220V / 110V
Working temperature :
-20℃ - +60℃
Delivery time :
15-20 work days
Description

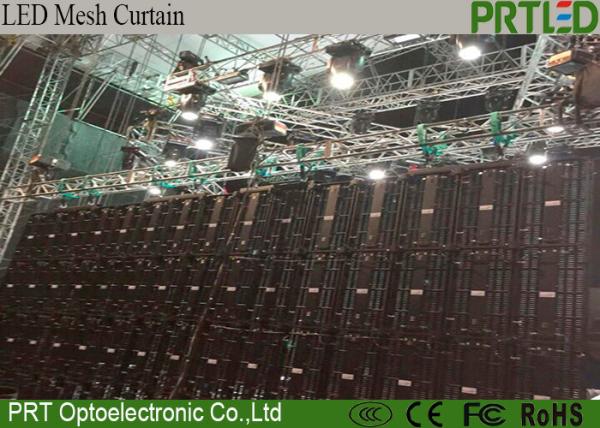

P10.416 flexible mesh led curtain screen for indoor outdoor display

Main advantages:

1. P10.416 flexible led curtain display has a light construction that is easy for installation,

2. With competitive price and medium brightness.

3. The mesh construction is specialized for fixing on the curtain wall of the building.

4. The LED SMT encapsulation which makes the led chip with more brightness and good heat radiating effect.

5. LED curtain is fit for digital stages in studios, and presents virtual scenes.

6. It reveals unique artistic charming through the special design features. It’s easy to install and disassemble and is cost-effective, specially suitable for large scale scene display.

Technical parameter :

Technical DataModel PH10.416 Curtain Wall Indoor
Pixel Pitch 10.416mm Operation Power Source AC90-260V 50-60HZ
Physical Density 9216pixels/m² Frame Frequency 60-85HZ
LED Shape & Size 3535 SMD 3 in 1 Refresh Rate 800-1500HZ
LED Arrangement 1R1G1B Brightness Adjustment 0-100% 8 levels automatic
Cabinet Size /Weight 500×1000×75mm; 13kg Gamma Correction -5.0-5.0
Cabinet Resolution 48×96 dots Correction Scale Level 16bits
Drive Mode 1/8s Color Temperature 5000-9300K
Brightness ≥3500cd/m² Brightness Correction Pixels, Module, Cabinet Correction
Transparency Ratio 25 % Input Source Support Composite, S-Video, Component,VGA,DVI,HDMI,SDI, HD_SDI
Contrast ≥2000:1 Control Distance UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
View Angle, 50% Brightness 140°/140° Operating Temperature -40°C - 65°C
Minimum View Distance 10m Operating Humidity 10-90%RH
Grey Scale 8bits/256levels Operating Life Span 100,000Hours
Color Capacity 16.7billion MTBF 5000 Hours
Maximum Power Consumption 600W/m² Protection Ratings IP65
Ave.Power Consumption 300W/m2 Out of Control Rate 0.01%
