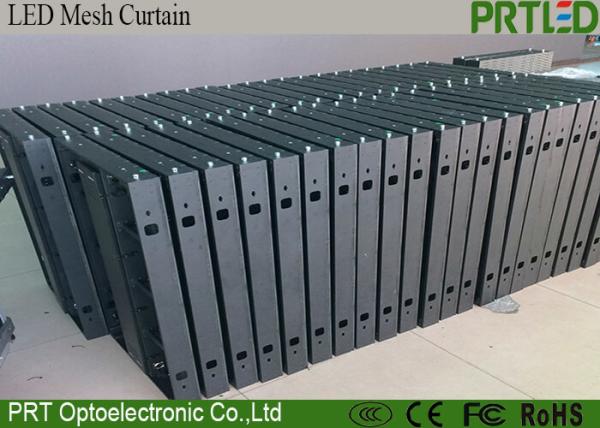

Waterproof IP65 LED Curtain Screen SMD P8.928 Multifunctional LED Flex Curtain
Waterproof IP65 LED Curtain Screen SMD P8.928 Multifunctional LED Flex Curtain
Specifications
Brand Name :
PRT
Model Number :
P 8.928 curtain
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen China
MOQ :
10 sq.m
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
flight case (6 panel into a case)
Product name :
P 8.928 led curtain
LED type :
RGB 3 in 1 SMD3535
Driving method :
1/7 scan
Screen size :
Customized
Display color :
Full color
Application :
Outdoor Indoor Events/Shows/stage
Description

Waterproof IP65 SMD P8.928 LED Curtain Screen With More Functions

Main details:

1. Rental Events led screen
2. Hight brighness
3. Flexible
4. Best price with high quality
5. CE ROHS,FCC certificates


Product Features:

1. Multifunctional:

The screen could be hung up for different kinds of event. And it also could be put on the floor as dance floor.

2. Curved design is available:

The screen could be both curved design and regular straight design.

3. Cabinet edge protection design:

The bottom modules on the cabinet are about 5mm off the round. So they will not be hit when we put the cabinets on the ground. This feature greatly protects the LEDs during assembly and disassembly.

4. Ladder function:

The cabinet is with strong rack, which could be used as a ladder to climb up for maintenance.

5. Quick and more secure assembly:

Only 2 steps to lock the cabinets together. And the lock is with Anti-release design which makes it more secure.

Technical parameter specification:

Item Techinical Specifications
Pixel Pitch PH8.928mm
LED Configuration SMD3535
Pixel Density 12546pixels/m2
Module Size 250*250mm
Module Resilution 28*28pixels
Cabinet Size 500mm*1000mm
Cabinet Resolution 56pixels*112pixels
Cabinet Material Die-casting Aluminum
Cabinet weight 12kg/pcs
Brightness 6500cd/m2
Viewing Angle H:140°/V:140°
Input Voltage AC220V/110V,50HZ/60HZ (±10%)
Output Voltage 5V,40A
Best Viewing Distance ≥9m
Refresh rate 2000Hz
Grey scale levels R(256bit) x G(256bit) x B(256bit)
Display Colors R(1024) x G(1024) x B(1024)
Life-span 100,000 hours
Working Temperature -20~50℃/10~90%RH
Malfunction dot rate < 0.0001
Drive Mode 1/7 scan
Ave Power consumption 160W/pcs
Max Power consumption 320W/pcs
