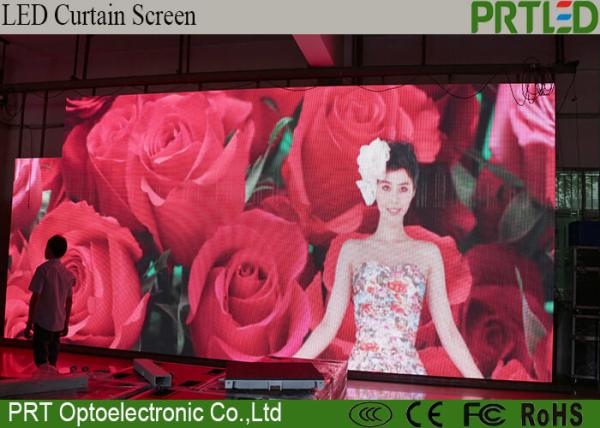

Waterproof P10.416 LED Curtain Screen , Indoor Outdoor Stage Background LED Screen
Waterproof P10.416 LED Curtain Screen , Indoor Outdoor Stage Background LED Screen
Specifications
Brand Name :
PRT
Model Number :
P 10.416 -500x1000
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen Guangdong China
MOQ :
5 sq.m
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
flight case (6 panel into a case)
Product mode :
P 10.4 mesh curtain
Density :
9216 dots per square meter
Transparent rate :
> 18 %
input voltage :
AC 220V / 110V with CE, UL
Working life :
100000 hours
Gurantee :
2-3 years free of charge
Description

Waterproof P10.416 LED Curtain Screen , indoor outdoor mesh background led screen

Main advantages:

1. The led curtain is lighter and thiner, can be installed easily, is very suitable for rental area or fixed installation.

2. With competitive price and medium brightness.

3. The mesh construction is specialized for fixing on the curtain wall of the building.

4. The LED SMT encapsulation which makes the led chip with more brightness and good heat radiating effect.

5. LED curtain is fit for digital stages in studios, and presents virtual scenes.

6. It reveals unique artistic charming through the special design features. It’s easy to install and disassemble and is cost-effective, specially suitable for large scale scene display.

Technical parameter :

physical pitch 10.4mm
physical density 9216 pixels/m²
led shape & size SMD 3535
led arrangement 1G1R1B
module size 500mm X 1000mm
module resolution 48 X 96 dots
brightness ≥3500cd/m²
contrast ≥2000:1
view angle, 50% brightness 140°/ 140°
minimum view distance 10m
gray scale 65536 levels
color capacity 28.147billion
maximum power consumption 600w/ m²
ave. power consumption 600w/ m²
drive mode Constant Current Drive 1/4
operationg power source AC90-260V 50-60HZ
frame frequency ≥60 pictures/ sec
refresh rate 360-2000HZ
brightness adjustment 0-255 adjustable
color temperature 5000-9300k
input source support DVI/ VGA, S-Video, RGBHV, Composite video signal, YPbPr(HDTV), HDMI, SDI.
control distance UTP CAT5E:100m, Multi-mode fiber: 500m, Single mode fiber: 10km
Storage temperature (-40°~ +85°)
operating temperature (-20°~ +60°)
operating humidity 10-95%
operating life span 100,000hours
MTBF 1000,000hours
protection rate IP65 for front side, IP54 for rear
out of control rate 0.01%
