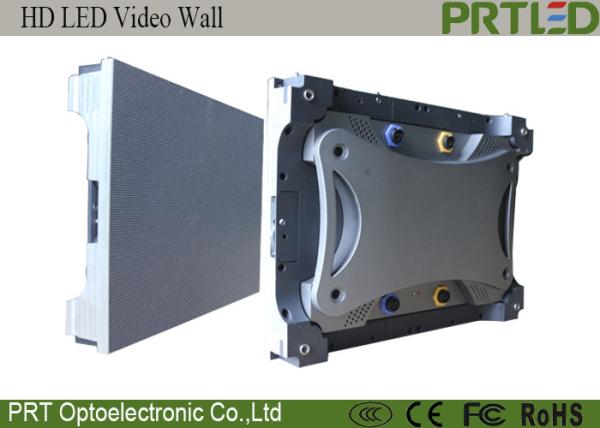

Slim P1.667 Indoor Full Color LED Display Ultra High Definition 400x300mm
Slim P1.667 Indoor Full Color LED Display Ultra High Definition 400x300mm
Specifications
Brand Name :
PRT
Model Number :
P1.667
Certification :
CE RoHs FCC
Place of Origin :
Shenzhen China
MOQ :
1 square meters
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case
led component :
1R1G1B
led type :
SMD 1010
panel size :
400*300mm
panel material :
Die-casting aluminum
Module size :
200 * 300 mm
Brightness :
<1000nit
Description

Ultra HD Indoor P 1.667 Full Color LED Video Wall with slim panel 400 * 300 mm

Quick detail:

1. Work voltage: 110~220V

2. Good uniformity

3. High contrast ratio

4. High gray scale


Specifications:

1. Ultra High definition, used as HD TV screen with full color (true color)

2. Seamless splice: no space/gap between the cabinet, ensure the good informance

3. High refresh rate, high gray scale and high contrast rate to 5000:1

4. Wide view angle, up to 160 degree, with same effection and no brightness difference

5. High reliability redundancy technique, with double power supply, when one is no work, another one will work automatically, ensure the cabinet keep working without any disturb.

6. With single point brightness and Chroma correction technology, ensure the led screen in good uniformity


Advantages:

1. Support seamless splice for any sizes

2. Adjustable brightness, support 16Bit high gray scale, for images to be brightness and perfect details

3. High contrast ratio, fast response speed, high refresh rate, meet the high speed image display, and support 3D display

4. High efficiency heat dissipation, no fans no noise

5. Long life span to 100000Hours, low brightness attenuation, good uniformity

Application:

Widely used in meeting room, banquet, studio, control centre where need high definition display screen

Related parameters for reference, please contact us for details.

DESCRIPTION: PH1.6 Indoor led video wall
No. Parameter Specification
1 Pixel Pitch(mm) 1.667
2 Pixel Density 360000pix/sq.m
3 LED Type SMD1010
4 LED Wave Length(nm) R:620-625/G:517.5-520/B:465-467.5
5 LED Luminous Intensity(mcd) R:100~130/G:120~156/B:20~26
6 Viewing Angle 160°
7 Brightness 1000cd/m²
8 Drive Method constant current
9 Driving IC MBI5153
10 Color Depth 16bit
11 Refresh Rate(Hz) 3800
12 Frame Rate(Hz) ≥60
13 Brightness Adjustment Manual/Auto/Program
14 Module Size(mm) 200×150 mm or 200 × 300 mm
15 Module Resolution() 120×90 dots or 120 × 180 dots
16 Cabinet Size(mm) 400×300
17 Cabinet Display Resolution() 240×180 dots
18 Cabinet Type and Material Die-casting Aluminum
19 Cabinet Weight(Kg) 5.0kg
20 Power Supply 5.0V 40A
21 Voltage(V) AC 220V
22 Avg. Power Consumption 40W/cabinet
23 Max. Power Consumption 120W/cabinet
24 Service Access Back maintenance
25 IP Grade IP31
26 Operating Temp/Humidity -20ºC~50ºC, 10~90%RH
27 Storage Temp/Humidity -40ºC~60ºC, 10~90%RH
28 Lifetime(Normal Temp) ≥50000H
29 System Control Nova/Linsn
30 Compliant Standard CCC,CE,RoHs

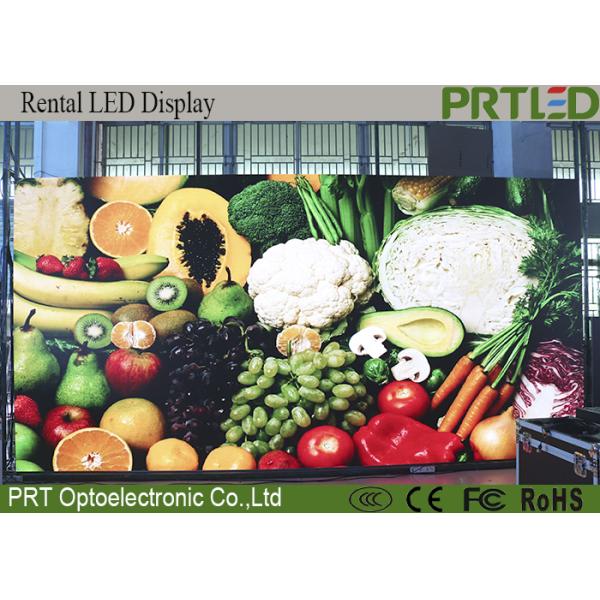

More pictures as following:

Slim P1.667 Indoor Full Color LED Display Ultra High Definition 400x300mm

Slim P1.667 Indoor Full Color LED Display Ultra High Definition 400x300mm
