500x500mm Outdoor Rental LED Display Die Casting Aluminum P 5.95 Outdoor LED Panel
500x500mm Outdoor Rental LED Display Die Casting Aluminum P 5.95 Outdoor LED Panel
Specifications
Brand Name :
PRT
Model Number :
OR 5.95-500
Certification :
CE ROHS FCC certification
Place of Origin :
Shenzhen Guangdong China
MOQ :
3 sq.m
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000sq.m per month
Delivery Time :
15 work days
Packaging Details :
flight case or wooden case
Mode number :
Outdoor P5.95
Panel pixel :
84 * 168 mm
IC brand :
MBI 5124
Warranty :
2 years
Brightness :
>5500 nits
Usage :
stage rental, concert, event show
Description

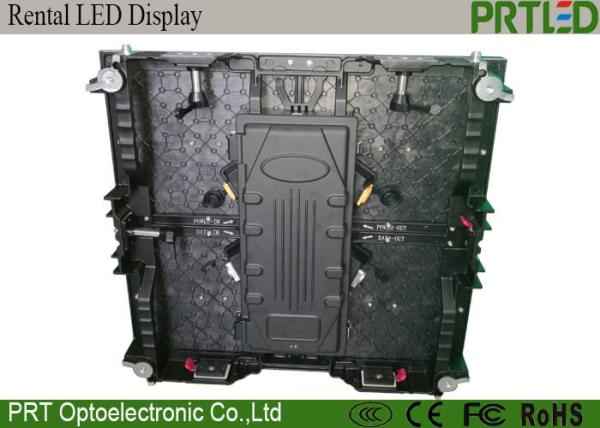

500 x 500 mm die-casting aluminum LED Panel P 5.95 Outdoor Rental LED Display

Product description:

1) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.

2) No mosaic due to excellent flatness and nice uniformity of light-emitting.

3) Wide viewing angles and the horizontal angle can reach 140° , The images effect will not change largely in the range.

4) Good heat dissipation capability because of the unique design of vent fan (liking shutter).

5) Environmental-friendly and energy-saving.

Our service:

1) Reply your inquiry in 24 working hours.


2) Experienced staffs answer all your query in fluent English, Spanish, French, German etc

3) Customized design is available, OEM & ODM are welcomed.

4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5) Special discount and protection of sales area provided to our distributor.

6) Warmly welcome your visit in our company if available.

7) Warranty: 24 months, a little investment for longer warranty time.
Main Technical Specifications:
Pixel Pitch 5.9 mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD2727
Brightness 5500 cd/m²
Color temperature 2000K~9300K adjustable
Viewing angle H: 140°; V:120°
Pixel density 28224 pixels/m²
Recommended viewing distance ≥5.9 M
Module size 250mm×250mm
Cabinet size W500mm×H500mm×D75mm
Cabinet Weight 7.5 kg
Cabinet Area 0.5 m²
Material Die-casting Aluminum
Aspect ratio 1:2
Ingress protection IP65
Operating Temperature/Humidity -20℃~+50℃/10~90%RH
Pixels per panel 84×168 Dots
Gray scale 16384 levels per color
Color 4.4 trillion
Service method Rear
Curve optional (Outer)-5°~+5°(Inner) (Optional)
Calibration Support luminance/chroma
Brightness control Manual/Automatic
Contrast ratio 3000:1
Video frame rate 50/60Hz
Rate refresh 1920Hz
Input voltage 100-240V~
Input power frequency 50~60Hz
Input power <max> 420W/ Panel
Input power <typical> 140 W/ Panel
Life Time ≥100,000 Hours

Warranty and Maintenance

All our products come with a warranty up to 3 years (depending on the products). Our LED displays are manufactured to cope with any kind of extreme weather. But in the event of problem, our technical support service ensures that your LED display operates with as little downtime as possible.

Installation Support

Our technicians & partners will facilitate your display installation. No need to call third-party companies to get and install your new acquisition or to rent heavy & expensive equipments, we are taking care of everything. We know the installation process from A to Z.
