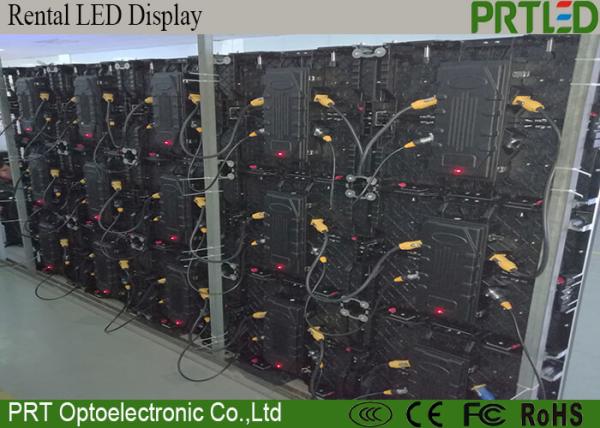

Live Events Outdoor Rental LED Display P4.81 500 x 500 mm Outdoor LED Screen
Live Events Outdoor Rental LED Display P4.81 500 x 500 mm Outdoor LED Screen
Specifications
Brand Name :
PRT
Model Number :
OR4.81-500
Certification :
CE,RoHs, FCC
Place of Origin :
Shenzhen China
MOQ :
3 sq.m
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000sq.m per month
Delivery Time :
15 work days
Packaging Details :
flight case or wooden case
Product name :
outdoor 4.81 mm SMD
LED type :
SMD2727 (3 in 1 RGB)
Module voltage :
DC 4.2 V
Working voltage :
AC 220V / 110V ±10%
View angle :
Horizontal 140°, Vertical 140°
Scenario :
indoor or outdoor Events, Shows
Description

Outdoor Rental LED Display Live Events P4.81 Display Screen with 500 x 500 mm


Product Features:

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle.

3. The integration of lamp and driving IC, together with with the multi-circuit structure, achieves evenly- distributed current, low power consumption and fast heat dissipation.

4. Ultra high brightness, low attenuation, high reliability and weather ability.

5. High contrast ratio. Adopting black lamps can improve the contrast ratio by 50%.

6. High refresh rate, high gray scale,ghost-canceling, low power consumption, low EMI, anti-creeping, multi-route redundancy backup-supporting, and dot-by-dot-calibration.

Techinical Specification:

Item NameP4.81mm LED screen
Pixel PitchPH4.81mm
Panel Resolution(W*H)104dots(W)*104 dots(H)
Pixel Configuration1R1G1B( SMD 3 in 1)
LED EncapsulationSMD 2727
Pixel Density43264dots/sqm
Driving Method1/13 Scan
Refresh Frequency≥1920Hz
Driver ICSpecial constant current IC with high refresh rate & high grey scale
Grey Scale14Bit(depending on the system and IC configuration)
Cabinet Size500*500 mm
White balance Brightness≥5500nits/ m2
Color Temperature8000K±500( adjustable)
Viewing AngleHorizontal 140° Vertical 120°
Optimal Viewing Distance>4.8m
Working VoltageAC 220V/110V ±10%
Module voltageDC4.2V
Max Power Consumption 800W/m²
Avg. Power Consumption300W/m²
Lifetime50000 hours
Operating Temperature–10℃ ~ 65℃
Net weight 7.5 Kg/pcs


Our services:

Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
