High Brightness Stadium LED Screens P10 Waterproof LED Perimeter Advertising Boards
High Brightness Stadium LED Screens P10 Waterproof LED Perimeter Advertising Boards
Specifications
Brand Name :
PRT
Model Number :
P10
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen Guangdong China
MOQ :
5 sq.m
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case or as requested
Product name :
P10 stadium led screen
Pixel type :
SMD 3535 (3 in 1 RGB)
Cabinet size :
960*960 mm ,1280*960 mm
Cabinet :
Iron
Module size :
W320*H160mm
Driving scan :
1 / 4 scan
Description

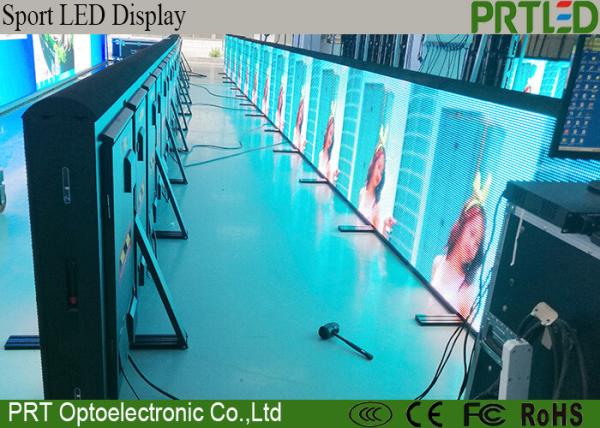

High brightness P10 Sports Stadium Perimeter LED Screen with waterproof iron cabinets

Advantages:

1. Use the flexible soft rubber module mask protect the players and LED display itself.


2. High brightness, large viewing angle, clear and vivid picture, high contrast degree and good waterproof function.

3. With the speciality structure support, the cabinet easy to move, also the support structure can be taken off and folded up easily.

4. The football arena full color LED display is applicable to the advertising screen sports such as arena football, basketball, volleyball, etc.


Specification:

1) IP65 weatherproof standard, against harsh environment such as water, dust , and grass clippings;


2) Convenient installation and software setup.No need to number the cabinets;


3) Easy power and data connections, daisy chain used from one cabinet to the next for quick connection;


4) High refresh rate : ≥1200 Hz( Photos taking with no flickers )


5) Cabinet angle adjusted freely 60 ~ 90 degrees enhance viewers’ visual enjoyment


6) Excellent flatness between cabinets, with claw lock system to link the cabinets;


7) Impact resistance. Soft rubber mask facia to protect the screen from the players' impact and protect the players themselves;140°Viewing Angle- SMD lamps provide wider viewing angle both vertically and horizontally

Outdoor led display screen for stadium perimeter
Model number P8 P10 P16
Pixel pitch 8mm 10mm 16mm
Module resolution 32*16 32*16 16*16
Module size 256mm*128mm 160mm*160mm 256mm*256mm
Pixel Density 15625(dot/sqm) 10000 3906
Brightness 7000(cd/sqm) 6500(cd/sqm) 6500(cd/sqm)
Weight 50(kg/sqm) 45(kg/sqm) 52(kg/sqm)
View angle 140 /140
LED configuration SMD 3IN1 SMD 3IN1 1R1G1B
Scanning 1/4 scan 1/4 scan Static

Max power

consumption

 1000W 900W 1100w
Warranty 3 Years quality warranty
Grey Scale 16384 level
Working voltage 220VAC/50HZ±10%
Life span >100000 hours

Lifetime to 50%

brightness

 75,000hr
Temperature Range -20℃ to +60℃
Service access Rear
Certification CCC,ROHS,CE
Grey Scale 16384 level
