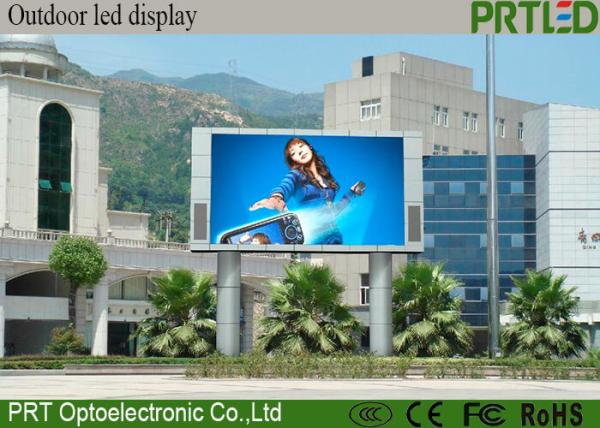

Outdoor Advertising P10 LED Display Screen with 1R1G1B Modules 32*16 Dots
Outdoor Advertising P10 LED Display Screen with 1R1G1B Modules 32*16 Dots
Specifications
Brand Name :
PRT
Model Number :
outdoor P 10
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen China(mainland)
MOQ :
5 sq.m
Price :
USD350-500/sq.m on detail request
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case(4 cabinets into a case)
Product name :
Outdoor Advertising Led P10
Module size :
320 mm * 160 mm
Brightness :
>6000nits
Cabinet material :
Waterproof iron cabinet
Optimal Viewing Distance :
8~ 100 meters
Description

Outdoor Advertising P10 LED Display Screen made with 1R1G1B modules 32*16 dots



Product features:

1. High-quality bright LED dot matrix module with painted ink color evently is not easy to be damaged and ensures the best viewing angle

2. Constant voltage chip driving reduces the power consumption and prompts the stability. Simple modular design is low cost and easy to maintain

3. Can undertake single point, single lamp maintenance and the cost is low.

4. Neat appearance, light weight, small size and safe 5V low voltage power supply system all make the module more attractive.

5. Besides, high definition effect comes with uniform luminance and soft color is suitable for indoor range viewing closely.

6. Temperature:-20°-+50°. Humidity:≤90%. MTBF:≥10,000houes. Lifespan:≥50,000hours. Defective,Dot Rage<0.0001.

8. Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.

Product parameters for reference:

P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component SMD3535 black
Size of module 320mm x 160mm
Resolution of module 32x16dots
Size of cabinet 960mmx 960mm /1280mm x 960mm(customized)
Resolution of cabinet 96x96 / 128 x 96dots
Material of Cabinet Iron with back doors
Weight of Cabinet 35kgs/50kgs
Brightness >6000cd/sq.m
Density 10000dots/sq.m
Best viewing angle 140° /140°
Best viewing distance 10-150M
Maximum power consumption <1000W/sq.m
Average power consumption <280W/sq.m
Driving method 1/2 scan
Control method Synchronization or Asynchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V±10% or 110V ±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication
Distance(without relay)		 Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

FAQ:

Q1: What`s your payment term? How long it takes to delivery?

A: We accept T/T 30% deposit in advance, and the rest 50% before delivery.

Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q3: What about your pre-sale service and post-sale service?

A: For pre-sale service: We have a professional sales team and a 8 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project!

For post-sale service: We can instruct you how to use, adjust the screens, and change the broken modules with spare parts.

Also, we can send technicals to your country to solve problems if needed. Mostly, our led display will not have big problems within warranty time!

Q4: What's the control system?

We use Colorlight,Nova star, Linsn control systems.

Q5: What's the warranty of your LED Display Screen ?

A: We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps.

Q6. How to proceed an order for led display?
A: Firstly, let us know your requirements or application, liking project size, rental or fixed installation.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the order and places deposit for formal order.

Fourthly ,We arrange the finished display cabinets.
