Specifications
Brand Name :
PRT
Model Number :
OT P16
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen China(mainland)
MOQ :
10 sq.m
Price :
USD350-500/sq.m on detail request
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
3000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case(4 cabinets into a case)
Product name :
P16 outdoor led display
LED type :
DIP 346 1r1g1b
Module size :
W 256 * H 256 mm
Driving scan :
Static Driving
Protection Level :
IP 65
HS CODE :
8528591090
Description

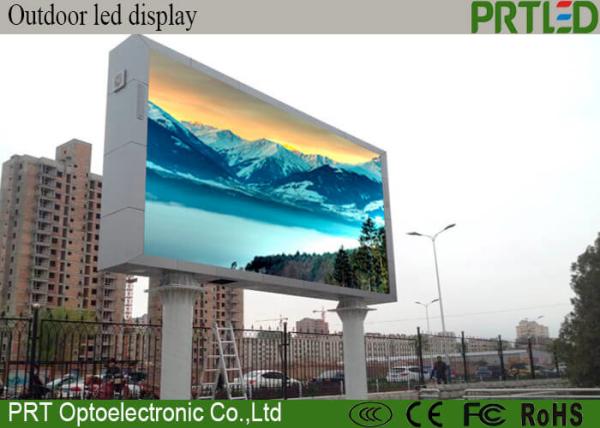

Advertising Billboard P16 DIP Outdoor Full Color LED Screen 1024*1024 mm LED Panel



Specification:

1. DIP346, high brightness, at most 8500cd/sqm, can be used directly under the sunshine.


2. High brightness uniformity and color uniformity(≥95%).


3. Ingress protection being IP65, weather proof and dust proof.


4. Good anti-UV and anti-oxidation performance.


5. Excellent heat dissipation.


6. Large viewing distance, 120° in horizontal, 120° in vertical.

No. Specifications
1. Part No. P16 video led display
2. LED chip Taiwan/Silan/Cree/Cree Cotco
3. Physical Pixel Pitch 16mm
4. Physical Pixel Density 3906dots/m2
5. Pixel composition 1Red, 1Green,1Blue
6. Moduel Size 256* 256mm
7. Moduel resolution 16*16dots
8. Cabinet thickness < 180 mm
9. Bracket of cabinet Easy to install onto the LED cabinet and unistall .
10. Brightness ≥ 7000 nits
11. Colors 16.7million
12. Viewing angle Horizontal ≥120°, Vertical: ≥ 60°
13. Viewing distance 10m -300m
14. Soft Rubber Mask To protect player and LED display itself .
15. Scan frequency

≥1200 Hz

There will be one receive card in each cabinet, so that the LED display won't sparked .Also it is very easy to move and connetct

16. Video Frame Rate ≥150 fps
17. Color temperature 6500°K to 9500°K adjustable
18. Control method Controlled by PC, synchronous display
19. Life span( half brightness) ≥100,000 hours
20. Weight 65Kg /sqm
21. IP rate front:IP65; rear:IP54
22. Average power consumption 400W/sqm
23. Peak power consumption 800W/sqm
24. Input voltage AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
25. Operating Environment Temperature:-20 to +60 degree Humidity:10% to 95%RH
26. Operating system Windows 98/2000/ME/XP
27. Type of video signal S-video, composite video ,RGB ,VGA ,DVI

2 years warranty, maintenance whole life
During warranty period,any problems caused byour quality, it is responsible of us, we will maintenance freely. After warranty, only charge basic material fee. Upgrade the control system and software whole life freely. Feedback in 24 hrs when receive client complain. Prepare enough spare parts which are easy break before delivery to client.
After sale service department will be calling for research one time every 2 months, in accordance with our warranty card, to check the led display operating conditions, the timely detection problems and quickly solve.

Free training
We can help training on staff from client about the led display control system and maintenance for one or two days freely, enable the staff to operate the system skillfully and can judge and solve the basic fault of the led display.

Service
"Timely, professional, considerate, honest satisfying " is always the service tenet of our company.
Through regular visit and telephone call service, we are always ready to find and aolve any problems and offer considerate services for customers.
Honesty-honesty can make great value. We are always be honest and practical, so as to offer customer the best services.
Cusomers's satisfaction is our greatest wish, so we will always works with heart and soul for customers
