Pro - Environment P10 DIP Outdoor LED Advertising Screens 7500 Nits Full Color
Pro - Environment P10 DIP Outdoor LED Advertising Screens 7500 Nits Full Color
Specifications
Brand Name :
PRT
Model Number :
DIP P10
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen Guangdong China
MOQ :
10 sq.m
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case(4 cabinets into a case)
Model :
P10 RGB
LED type :
DIP 346 1r1g1b
module size :
160 x 160 mm or 320 x 160 mm
View angle :
110 H,70 V
Waterproof :
IP 65
warranty :
up to 2 years
Description

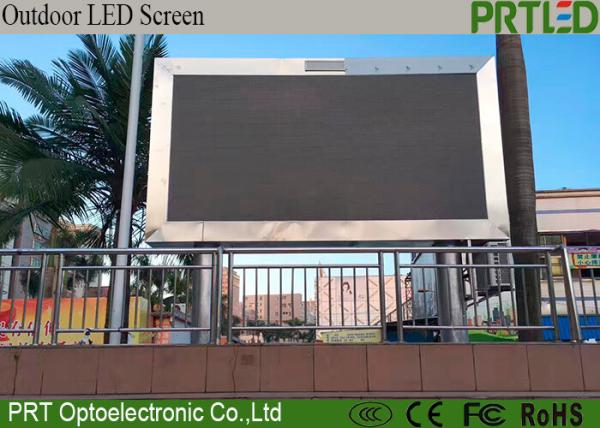

P10 outdoor DIP Full color advertising led screen with high brightness 7500 nits

Our advantages:

1. Have cooperated with a lot of importers in the world.
2. Experienced in doing business with big customers.
3. Quick delivery time for decent orders.
4. Own designing team for new products development.



Product Features:

1. High Brightness: We are a professional factory which specialises in producting Outdoor Full color LED Display and LED Module, The Brightness is at least 7500cd/sq.m;
2. Waterproof: The Standard of LED Cabinet is IP65, which it can protect the rain and dust into the screen. You can fixed install the screen in the rainy day.
3. Wide Used in the outdoor:Widely used in Public, street advertising, shopping mall. plaza station, Building billboard, expressway,ect
4. Energy Saving and Pro-Environment: Such as P10 outdoor Full color led display,100sq.m; If it is spent for 14hours/day, total 365 days/year. The Energy Saving led display will be save over 10,000 hours than traditional screen each year.

Parameters are as following for reference:

Pixel Pitch 10mm
Pixel Conformation 1R1G1B
Pixel Density 10000 pixels/ real
Module Dimension 160×160mm
Module Resolution 16×16 dots
Cabinet Dimension 960×960×180mm
Cabinet Resolution 96×96 pixels
Slot between cabinet ≤0.3mm
Weight of the LED display screen 55kg/m2
Screen luminance 7000-8500 CD/m2
Contrast ≥ 750:1
Colors 16777216
Brightness uniformity Whole Screen Luminance Discrepancy<10%
Grey scale(typical)

Red, Green, Blue are adjustable,

256 levels respectively
Optimal viewing Angle H<1200,V<550
Optimal viewing distance 10m-150m,vivid contents under sunlight
Drive mode Constant Current, 1/4 Scan
Refresh frequency 60 HZ/s

LED lamp life-span

(Theoretical value under ideal state)

 100000 hours
Mean time between failures 10000 hours
LED Display Screen life-span ≥ 10 years
Scotoma ratio <0.01%, discrete distribution
Max. power consumption 650 W/m2
Ave. power consumption 260 W/m2
Power supply requirement 220VAC/50HZ±10%
Operating ambient temperature -20+80
Operating ambient humidity 10%95%RH
Transmission speed High Speed, 40Mbit/s
Grade of waterproofing Front: IP65, Back: IP54
