Specifications
Brand Name :
PRT
Model Number :
P 16
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen China
MOQ :
10 sq.m
Price :
USD350-500/sq.m on detail request
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
3000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case(4 cabinets into a case)
Model :
Pixel 16 mm
Brightness :
Up 7500nits
Stand Cabinet size :
1024 mm x 1024 mm
LED Component :
1R1G1B
Module size :
W 256 * H 256 mm
Driving scan :
static
Description

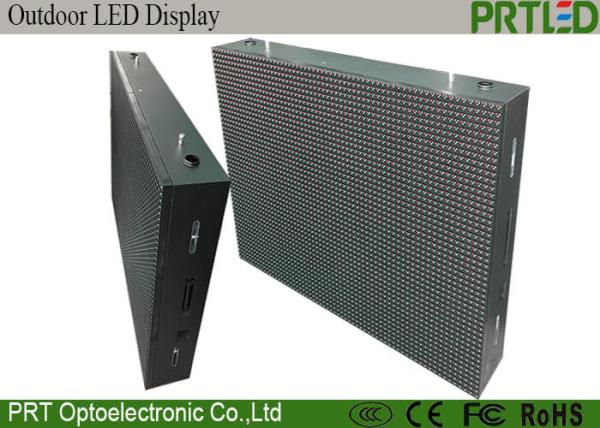

Full Color Outdoor Advertising LED Screens with P 16 DIP 346 LED Panel



Specification:

1. Super light design ensure the cabinet easy to be installed and disassembled

2. High brightness meet the needs of various application environments

3. Energy saveing design and good performance in color uniformity

4. Superb workmanship to ensure every processing details

5. Environmental raw material (LED chips, mask, glue, and steel cabinets)

6. Large viewing angle. Horizontal:110 ° , Vertical: 60° .

Detailed Specifications of Outdoor Full LED Display
Model No. P16
Pixel Pitch 16mm
Module Size 256*256mm
Pixel Density 3906 dots/ m2
Pixel composition 1R1G1B
Module Resolution 16*16 dots
The Optimum Viewing Distance >15M
The Optimum Viewing Angle H:110° V:60°
Maximum PowerConsumption 600W/m2
Standard Cabinet Size 1024*1024mm
Cabinet Weight 65 Kg
Driving Method Static Scan
Frame Frequency ≥60Hz/s
Refresh Rate ≥500Hz/s
White Balance Luminance(CD/m2) ≥7500cd/m2
Operating Environment Temperature between -20°C and 60°C
Operating Voltage 220V±10%
Grey Scale Display Colors≥
65.7trillion
color(Synchronized)
Brightness Adjustment 1024 grades of each
color(R.G.B)can be
adjusted manually
and 16 levels of each color can be adjusted
automatically
Input Signal RF,S-Video,RSBHV,YUV,YC,COMPOSITION
Control System PC+DVI display
card+master card + optical fiber transmission
Average No Failure ≥1000 hours
Time Life-span >100000 hours
Out-of Control rate <0.0002
Transmitting Distance Internet cable:<100m

FAQ:

1, How can you place the order to us?


We are factory of Outdoor and Indoor LED Display, and has nearly 10 years' Professional experience in this area. If you are interested in our products, we will try our best to cooperate with you. Firstly, you can tell us the module size, then our engineer will analysis and do several kinds of projects as per your request for your selection, every project has its own advantage and disadvantage, all the details included price is for your reference, then you can make decision to select which project is the best fit for your situation. Once you confirmed the order, then you will pay us the deposit of 30%, both of you and us sign the contract, then we will produce the goods for you, make sure to offer you good quality, and delivery the goods within the deadline, Service first, trust us, trust the world.

2. How can you trust the quality of our products?
For building the good reputation,just say only is not suitable , we must do it to prove ourself, every course is strict from the beginning we buy material, our engineer inspect the quality of material, even the smallest component, what's more, they will guide workers to produce, once they found the bad point, the products will be done poorly done work over again in the shortest time, they will not stop to test every point until all the point is good , because they know details decide whether succeed or not especially in nowadays, welcome to check us.

3. What is our culture?
Our factory has our own characteristic culture. It is full of passion, warmth, has our own sunshine motto, every worker in this firm is not only workmate, what's more, we are friends, the friendship is rich, all the staff try their best to work everyday. Our work slogan is: Work warmly, live happily; The spirit is: Strictly demanding, Consciously dedication; The goal is: Customer front, Service first; Service idea: Service loyally, live Wonderfully; Welcome to experience it.
