Outdoor Full Color Stadium LED Screens Advertising P8 With Foldable Back Support
Outdoor Full Color Stadium LED Screens Advertising P8 With Foldable Back Support
Specifications
Brand Name :
PRT
Model Number :
P8 sport
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen Guangdong China
MOQ :
10 pcs
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
wooden case or flight cases
Item :
P 8 die-casting
Module size :
320 mm x 160 mm
Cabinet size :
960 mm width * 960 mm height
Panel material :
die-casting aluminum
Application :
stadium perimeter, rent events
Brightness :
6000nits
Description

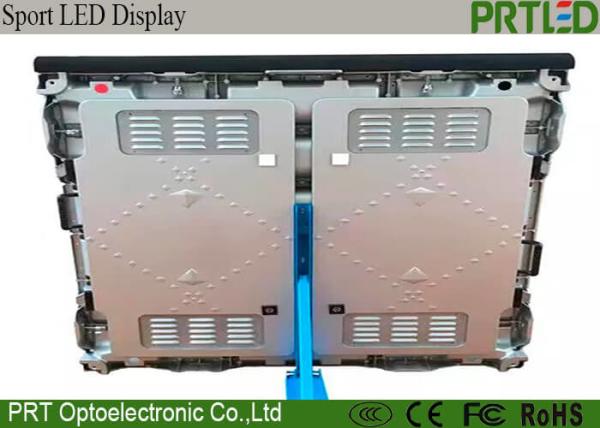

Outdoor Full Color Advertising P 8 Stadium LED Screens with foldable back support


Main Features:

1 . Multi-function usage:

the kind of cabinet design, available for both indoor and outdoor stadium perimeter application,

also can be used for rental events LED screen.

2 . Soft,replaceable, impact-resistant shaders protect LEDs from harm and will not injure players in the event of a collision.

3 . Supler light design, with only 30kg/sqm, save both shipping costs and labor costs.

Function and Technology Character:

1. Support multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on

2. The screen can get singal of camera, video, VCD, DVD, LD, TV and so on.

3. Brightness, contrast, saturation can be adjusted automatically by itself and manual.

4. Clear picture without flicker and distortion.

5. Show everything with your PC synchronously.

6. Super correcting technology for distortion.

7. One interface for sound signal and two ports for video signal at least.

8. Connected and controlled by PC via Lan and remote control.

9. Multiform language are available, such as English, French, Germany, Spanish, Russian and so on

Our service:

1. We provide 2 years warranty. If the item is defective, please notify us within 7 days after goods delivered.

2. All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.

3. The buyer is responsible for all shipping costs incurred.


Technical specification:

No Specifications
1. LED chip SMD 3IN1 1R1G1B
2. Physical Pixel Pitch 8 mm
3. Physical Pixel Density 15625(dots/sqm)
4. Pixel composition 1R1G1B
5. Moduel Size 320*160mm
6. Moduel resolution 40*20dots
7. Cabinet thickness 84mm
8. Bracket of cabinet Easy to install and dismantle
9. Brightness 6000cd/m2
10. Colors 16.7million
11. Viewing angle Horizontal 140°, Vertical 140°
12. Viewing distance 8m -20m
13. Soft Rubber Mask To protect player and LED display itself .
14. Scan frequency 2400hz
16. Color temperature 6500°K to 11000°K adjustable
17. Control method synchronous control by PC or Asynchronous control
18. Life span( half brightness) ≥100,000 hours
19. Weight 25Kg/cabinet
20. IP rate IP65 front
21. Average power consumption 350W/sqm
22. Peak power consumption 1000W/sqm
23. Input voltage

AC220V/50Hz ±10% or AC110V/60Hz ±10%

AC380V/60Hz ±10%
24. Operating Environment Temperature:-20 - +60 Humidity:10%-95%RH
25. Operating system Windows XP/7/8/10 or Mac OS
26. Type of video signal S-video, composite video ,RGB ,VGA ,DVI
