3G USB Controlled P5 Mobile LED Screen For Movable Truck / Car / Vehicle
3G USB Controlled P5 Mobile LED Screen For Movable Truck / Car / Vehicle
Specifications
Brand Name :
PRT
Model Number :
P5 RGB
Certification :
CE ROHS FCC
Place of Origin :
Shenzhen China(mainland)
MOQ :
5 sq.m
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 sq.m per month
Delivery Time :
15 work days
Packaging Details :
flight case or wooden case
Pixel pitch :
5 mm
LED type :
SMD2525
Module size :
160 mm x 160 mm
Brightness :
6000 nits
Application :
movable truck, car
Interface :
IP 65
Description

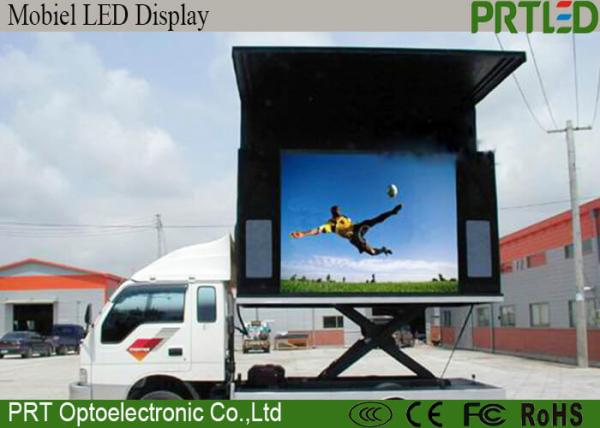

Good waterproof P 5 outdoor single-sided truck mounted LED Display with high resolution



Product Features:

1. Clear picture without flicker and distortion

2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

3. Low consumption, stable performance, highly durable

4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually

5. 2 years warranty, easy to install & maintenance

After-sales service:

1) Service principles: Response in time, solve problems as soon as possible and ensure the use.


2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges;

After Maintenance period, only charge the material costs fees free of manual work fees.


3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.


4) Under normal use and storage, Our Company will be responsible for the equipments.

Technical parameters:

Item Parameter
Pixel Pitch 5mm
LED Encapsulation SMD 2525/1R1G1B
Module resolution 32dots*32dots
Module size(mm*mm) 160mm*160mm
Pixel density 40000dots/m²
Weight 0.56KG
Drive chip 2028, 5124, customized
Drive Method: 1/8scanning
Brand of power supply CL 5V~40A
Gray Scale Recommended 256 level
The best viewing angle Horizontal:150 Vertical:120
Max Power Consumption 1000W/ m²
Control Mode Video frequency synchronization
Optimal Viewing Distance ≥10m
Brightness ≥7000cd/m²
Blind Spot Rate <0.0001
Brightness Control 0-255 Grade
Contrast 100 levels adjustable
Earth Leakage Current <2mA
MTBF >5000Hours
Lifespan >100000Hours
Power Supply Mode AC220V/50HZ or AC110V/60HZ
Protection Level IP65
Humidity 0%~90%
Operating System Windows98/me/2000/NT/XP
Operating temperture Operation:-30°C~+60°C

Our servie :

1. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.


2. Our products are exported to foreign countries and regions.


3. Our professional team will constantly communicate with you, to establish a good working relationship.

We aontact you by e-mail and phone, always prepared to help you out.
