Street Advertising P8 SMD LED Screen Billboard Outdoor Wifi 3G FCC ISO Approved
Street Advertising P8 SMD LED Screen Billboard Outdoor Wifi 3G FCC ISO Approved
Specifications
Brand Name :
PRT
Model Number :
P8 billboard
Certification :
CE ROHS FCC
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
20 work days
Packaging Details :
wooden case( one in one)
Model no. :
P8 Street led display
LED type :
SMD3535 1R1G1B
Module size :
256 *128 mm
Screen size :
customized
Brightness :
6000 nits
Certificates :
CE,ROSH,FCC,ISO
Description

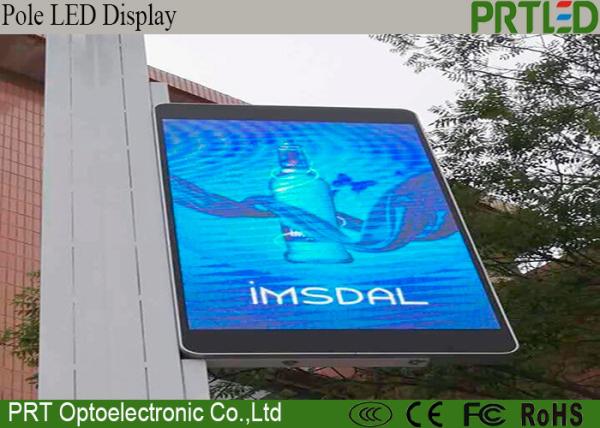

P8 SMD outdoor pole led display wifi 3G outdoor advertising street led billboard


Product Featurers:

1. The first level LED chip from Taiwan Epistar


2. With pure golden wire connection in LED


3. Grand A row material for module frame and mask

4. 4 layers PCB and copper plating thickness > 18mil


5. Stainless steel screws when assembly


6. Disassembly and assembly are quick and easy


7. 3 to 5 years warranty

8 . Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.

9 . Life time >10 years;

10. Update display contents through wifi, 3G/4G, USB as request

Trade terms:

1. Payment:T/T, 30% deposits , 70% balance to be paid before delivering

2. By Air or Ship based on our customers' needs

3. Shipping port:ShenZhen, Mainland China

4. MOQ:1pc

Parameter for reference are as below!

Pixel pitch P8
Module Parameters Pixel pitch 8mm
Pixel Density 15625dots/m²
LED type SMD 3535
LED Configuration 1R1G1B
Module Resolution 32dots*16dots
Module Size 256*128mm
Drive Method 1/4
Cabinet Parameters Cabinet Resoltuion 96 dots* 160dots
Cabinet Size 768*1600mm
Cabinet Weight 55KG
Display
Parameters		 Optical Brightness 6500CD/m²
Viewing angle H/V 140/140
Best Viewing Distance 8-80 m
Grey Scale 14 Bit
Power Max power consumption 800W/m²
Ave power consumption 380W/m²
Working Voltage 220V / 110V
Reliability Working Temperature -20 to 60 ℃
Working Humidity 10-95% RH
Life Span 100,000 Hours
Pixel failing Rate 0.002%
IP Rate IP65
