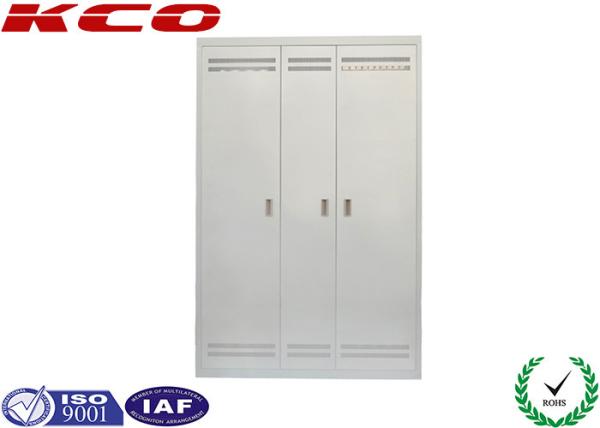

1440 Cores Large Capacity 19'' Fiber Optic Distribution Frame Cabinet For Data Center

Overview:

- Kocent Optec Limited, with more than 10 years of OEM and ODM experiences about steel tape fiber optic distribution box, we get many OEM and ODM order from old and new customers.

- We can supply large capacity of standard 19 inch of fiber optic distribution frame.

- It is large use for Fiber To The Building and data center.

- Normally use in building control central.

- Come with the fiber optic distribution frame, we also can supply fiber optic ODF Unit, fiber optic terminal box rack mount/ patch panel that full load with adapter and pigtail.

- The capacity of frame can be 576, 720, 960 or even 1440 fibers.

Dimension:

Product introduction:
- Optical distribution terminal box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.
- The wall mountalbe fiber optic terminal box design to use to building or pillar wall mounting. It can use for indoor or outdoor application.
- As the product variety and customer requirements we also supply 3 in 1 terminal box to sastify more fibers capacity inquirement. It is not only can connect the cable and patch jumper, also can install the fiber splitter or other product as your need. With 4 different grids, you can use it install any product as you need.

Product picutures:


Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa

Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss ≤0.2dB
- Insert loss ≤0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)

Parameters:

Package:

Relation products:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
