Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape
Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape
Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape
Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-FTB04M-SCU
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
20,000 pcs/ month
Delivery Time :
7~14 days after get payment
Packaging Details :
carton box, wooden pallet
Material :
Steel tape
Cable Port :
1 cable ports
Splitter :
1x2, 1x4
Adapter :
SC/UPC or SC/APC
Application :
Outdoor, Wall mount, Pole mount
Capacity :
4 cores
Description

Indoor Wallmount Fiber Optic Terminal Box 4port Full-load With SC/UPC Mini Size Metallic Face Plate

Over View:

- KCO-FTB04M Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.
- KCO-FTB04M-SCU is use for 4 cores splicing and management. It is full load with SC/UPC adapter and SC/UPC pigtail.
- The adapter port can make SC port, LC port, FC port, ST ports, ... to meet customer request.
- They are suitable for indoor wall mounted using.
- Mini size and light weight, it can use indoor with wall mount application or also do face plate.
- Suitable for Fiber to the home project.
Application:
- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for wall-mounted applications
- Used in FTTH, Telecommunications, CATV ect.
Features:
- Cold-roll steel, electrostatic painting
- Suitalbe for different adapters: FC, SC, ST, LC …
- 4~8 fibers splicing module inside
- 4 adapters can be loaded
- Hinge and convenient press-pull button lock design
- Indoor using
Specification:
Item KCO-FTB04M-SCU
Name SC/UPC single mode fiber optic terminal box

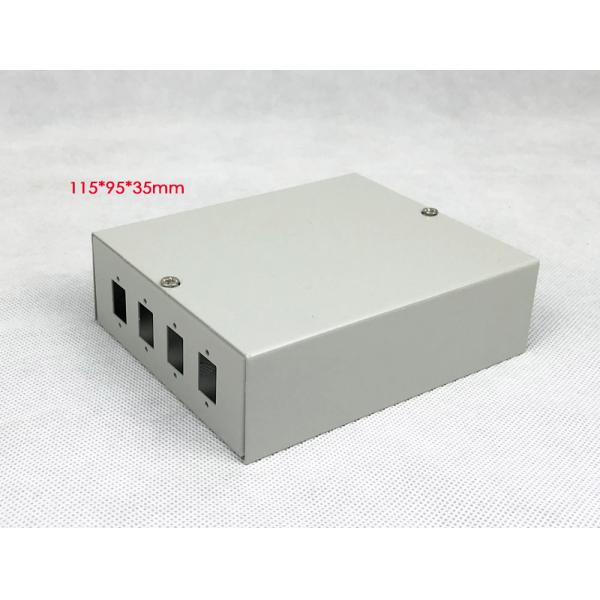

Size 115*95*35mm
Weight 0.3kg
Thickness 0.6mm
Cable port 2
Adapter port 4
Color Black/Grey

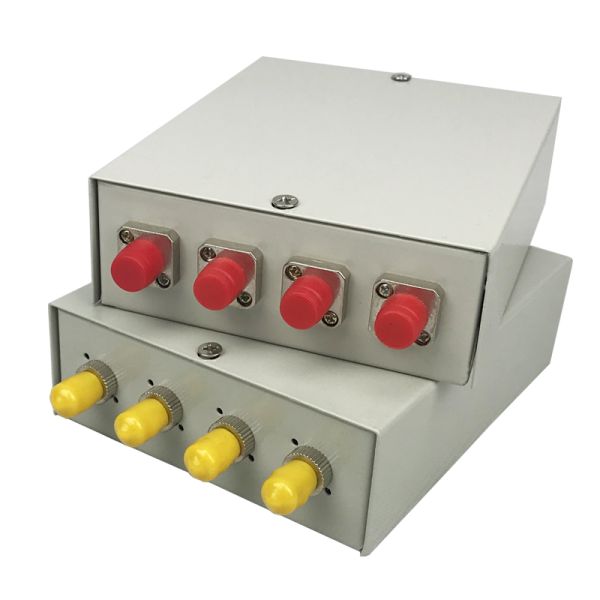

Product Photos:
Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape
Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape

Size:

Model Capacity Dimension Remark Adapter and pigtail
KCO-FTB04M-SCU 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*SC/UPC adapter and 4* SC/UPC Pigtail
KCO-FTB04M-SCA 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*SC/APC adapter and 4* SC/APC Pigtail
KCO-FTB04M-DLCU 8 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*Duplex LC/UPC adapter and 8* LC/UPC Pigtail
KCO-FTB04M-DLCA 8 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*Duplex LC/APC adapter and 8* LC/APC Pigtail
KCO-FTB04M-FCU 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*FC/UPC adapter and 4* FC/UPC Pigtail
KCO-FTB04M-FCA 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*FC/APC adapter and 4* FC/APC Pigtail
KCO-FTB04M-STU 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*ST/UPC adapter and 4*ST/UPC Pigtail

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

Indoor Outdoor 4 Port Fiber Patch Panel Sc Full Load Mini Size Steel Tape
