Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12
Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12
Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12
Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12
Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12
Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-DINRAIL-SC-OM3-12
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
20,000 pcs/ month
Delivery Time :
7~14 days after get payment
Packaging Details :
carton box, wooden pallet
Material :
Steel tape
Cable Port :
2 cable ports
Adapter ports :
12 port
Adapter :
SC simplex, LC duplex
Application :
Din Rail, Indoor Rack Mountable
Capacity :
24 cores
Description

Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12

Advantages of din rail fiber optic terminal box:

- This DIN rail mounted fiber optic terminal box that used for fiber connection and distribution.

- It is made of aluminum, inside with plastic splice tray, light weight, good to use. We also have dinral terminal box that made by plastic and steel tape. Contact with our sales team to get more detail informations about our din-rail terminal box.

- Din rail fiber optic termibal box is metal or plastic box that special designed to be snapped on din rail in the fiber optic distribution frame. It have easy to install and maintain, save more space.

- Din rail fiber optic splice terminal box accepts one modular panel making it ideal for smaller fiber count application.

- It is dustproof design, suitable for rack dustproof installaltion.

- Din rail fiber optic splice termibal box is compatible for most adaptors.

- It can be widely applied for distribution and end connection of indoor cables.

- The dinrail box is full loaded with pigtail and adapter. More convinient to using.

Quick infomation:

Name Din rail (type) fiber optic splice terminal box.
Part number KCO-DINRAIL-SC-OM3-12
Cable port 2 cable ports
Suitable cable diameter 8~24mm
Adapter ports 12 adapter ports
Suitable adapter type SC simplex adapter ( Single mode, Multimode, OM3, OM4 )
LC duplex adapter ( Single mode, Multimode, OM3, OM4 )
Splice capacity Typ. 12 cores
Maximum 24 cores
Size 133*130*35mm
Weight About 0.8kg

Fearure:

- Cold-roll steel, electrostatic painting

- Suitable for different adapters: FC, SC, ST, LC …

- 2 pcs cable entry/exit ports; 4, 6, 8, or more pigtail entry/exit ports
- Max. 4, 6, 8, or more adapters can be loaded

- Integrated splice holders (fusion splices)
- IP20 protection
- Rear or aside DIN rail fixation
- 2 rear entries (PG 11 cable gland)
- Grey color (RAL 7035)

Application:

- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for wall-mounted applications
- Used in FTTH, Telecommunications, CATV etc.

Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12

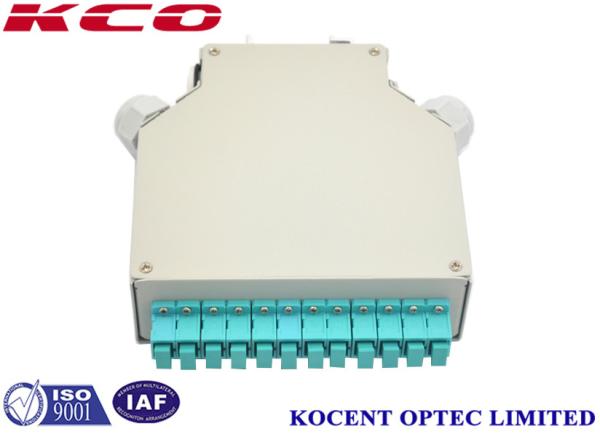

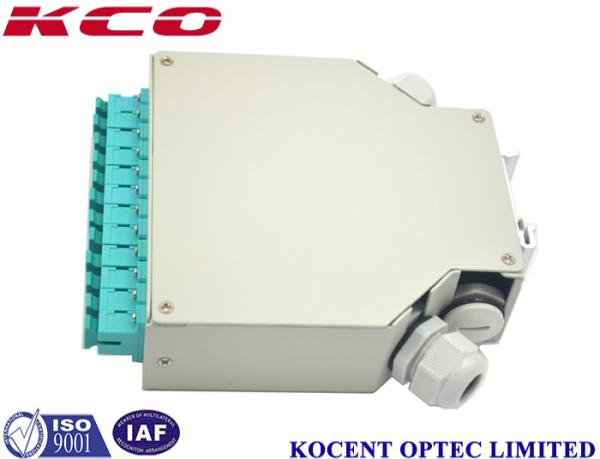

Product Photo:

Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12

Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12

Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12

Product Size:
Box size 133*130*35mm
Packing box size 165*155*45mm
Net Weight About 0.8kg

Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12


Din Rail Fibre Optical Termination Box For Multimode OM4 OM5 KCO-DINRAIL-SC-OM3-12

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
