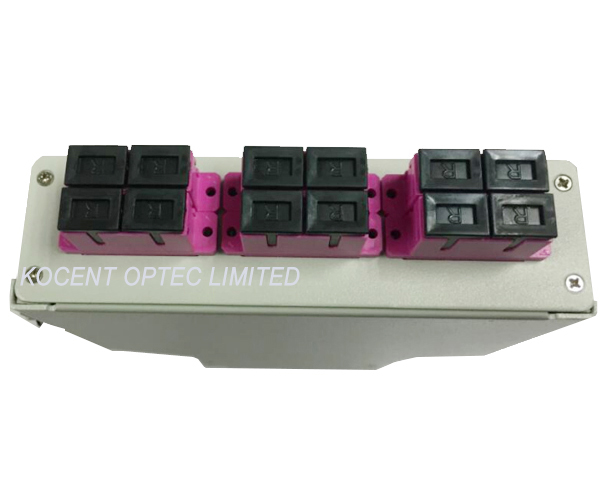

Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5
Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5
Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5
Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-DINRAIL-SC-OM4-12
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
20,000 pcs/ month
Delivery Time :
7~14 days after get payment
Packaging Details :
carton box, wooden pallet
Material :
Steel tape
Cable Port :
2 cable ports
Adapter ports :
12 port
Adapter :
SC simplex, LC duplex
Application :
Din Rail, Indoor Rack Mountable
Capacity :
Max. 24 cores
Description

KCO-DINRAIL-SC-OM4-12 Din Rail Optic Fibre Splice Terminal Box

For FTTH GPON EPON

Overview:
- Kocent Optec Limited provides OEM and ODM service for all type all size of steel tape metallic fiber optic terminal box.
- Our steel tape metallic fiber optic terminal box series include:
+ Fiber optic distribution frame: 144 cores, 288 cores, 576 cores, 720 cores, 960 cores, 1152 cores, ...
+ Fiber optic rack mount terminal box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Fiber optic ODF Unit Box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Fiber Optic Patch Panel: Fix type, rotating type, sliding type
+ Indoor wall mount fiber optic distribution box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Outdoor wall mount fiber optic distribution box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
- Din-rail fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected. All of the Din Rail Boxes can be fully populated.
- Contact with our sales team to get best support for your OEM and ODM order.

Quick infomation:

Name

Din rail (type) fiber optic splice box
Din rail typer fiber optic terminal box

Part numberKCO-DINRAIL-SC-OM4-12
Cable port2 cable ports
Suitable cable diameter8~24mm
Adapter ports6 adapter ports
Suitable adapter typeSC duplex adapter ( Single mode, Multimode, OM3, OM4 )
LC 4 ways adapter ( Single mode, Multimode, OM3, OM4 )
Splice capacityTyp. 12 cores
Maximum 24 cores
Size133*130*35mm
WeightAbout 0.8kg
ColorWhite, grey, black


Product Photo:
Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5
Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5
Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5

Application:

- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for wall-mounted applications
- Used in FTTH, Telecommunications, CATV etc.

Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5

Fearure:
- Cold-roll steel, electrostatic painting

- Suitable for different adapters: FC, SC, ST, LC …
- 2 pcs cable entry/exit ports; 4, 6, 8, or more pigtail entry/exit ports
- Max. 4, 6, 8, or more adapters can be loaded
- Integrated splice holders (fusion splices)
- IP20 protection
- Rear or aside DIN rail fixation
- 2 rear entries (PG 11 cable gland)
- Grey color (RAL 7035)


Advantages of din rail fiber optic splice terminal box:
- Din rail fiber optic splice termibal box is metal or plastic box that special designed to be snapped on din rail in the fiber optic distribution frame. It have easy to install and maintain, save more space.
- Din rail fiber optic splice terminal box accepts one modular panel making it ideal for smaller fiber count application.
- It is dustproof design, suitable for rack dustproof installaltion.
- Din rail fiber optic splice termibal box is compatible for most adaptors.
- It can be widely applied for distribution and end connection of indoor cables.

Size:
Box size133*130*35mm
Packing box size165*155*45mm
Net WeightAbout 0.8kg

Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5
Din-rail Din Box Indoor Rack Mount Fiber Optic Terminal Box 6 Port SC Duplex OM4 OM5

OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
