KCO-ODB-72A 72port 96fiber Wall Pole Mount Metallic Optical Terminal Fiber Distribution Box

Features:

- FTTH fiber opitc distribution box is a newly developed by our company for application of FTTH.

- The box is light and compact, especially suitable for protective connection of fiber calbes and pigtials in FTTH.
- Shell material for high quality cold-rolled steel sheet plastic-sprayed surface treatment, beautiful shape
- The double structure design, the upper for light optical device wiring layer, and the lower layer for fiber splicing, internal go fine routing clear, - easy to operate Capacity 24 cores, the standard installation SC adapter, other adepter type you can order
- The optical light module uses a modular design of the upper, have very strong interchangeability and universal
- Clearly marked, each core of optical fiber in and distribution are clearly marked
- The opening angle is not less than 180 DHS, outdoor hang wall or hang lever installation
- Has reliable cable fixed, stripping, and protection grounding system.

- Ensure that optical fiber, cable in any position bend curvature radius greater than 30mm
- Outdoor type into cable under a fine; indoor type up and down into the cable, and the upper and lower out fine with temporary tail fiber storage area

Quick Information:

Name: Fibers Outdoor Fiber Optic Distribution Box (FDB type)

Part number: KCO-ODB-24A

Capacity: 24 cores SC/FC/ST, 48 cores LC

Tray numner: 2 trays

Material: Steel tape

Thickness: 1.0mm/1.2mm

Size: 400*4000*100mm

Colow: Grey, White, Black (optinal)

Application:
Widely used in FTTX access network;
Telecommunication Networks;

CATV networks;
Data communications networks;
Local Area Networks.

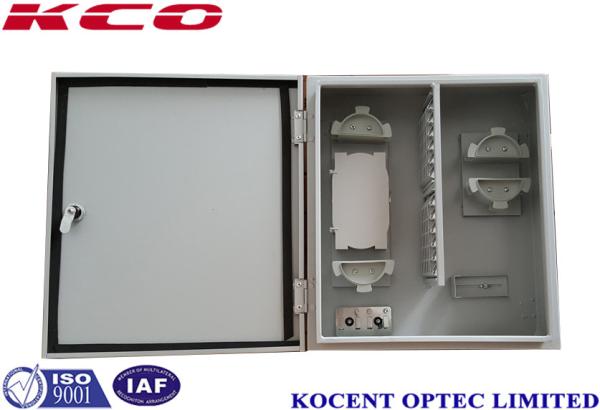

Product photo:

Ordering information:

Kocent Optec Limited supplys all capacity of terminal box, such as 4ports, 8 ports, 12ports, 36ports, 48ports, ... And can loading with telecom grade of pigtail and adpater. Please contact with our sales team to get more detail about this series of terminal box.

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
