KCO-Drawer 04-SC-24 19'' Fiber Optic Patch Panel 24 Cores With SC Pigtail And Adapter

Product introduction:

- The patch panel system in its basic form is supplied with the panels unloaded ready for you to install the adapter of your choice.

- The panel can also be pre-loaded complete with the required adapter and simple splice management kit, or supplied with pre-terminated cable to meet your project needs.

- Fiber optic patch panel is an integrated unit for fiber management.

- We offer wall mounted fiber optic patch panel and rack mounted fiber optic patch panels, these equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.
- There different models to fit for 12 core fiber, 24 core fiber, 36 core fiber, 48 core fiber, 72 core fiber, 96 core fiber, 144 core fiber applications.

- They can be with different adapter interface including the SC, ST, FC, LC MTRJ, etc. related fiber accessories and pigtails are optional.

Applications:
- FTTH, FTTx, FTTB
- LAN
- Data centers
- Local area network etc

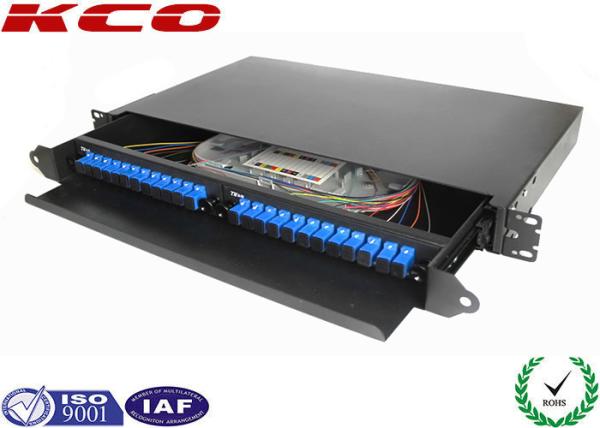

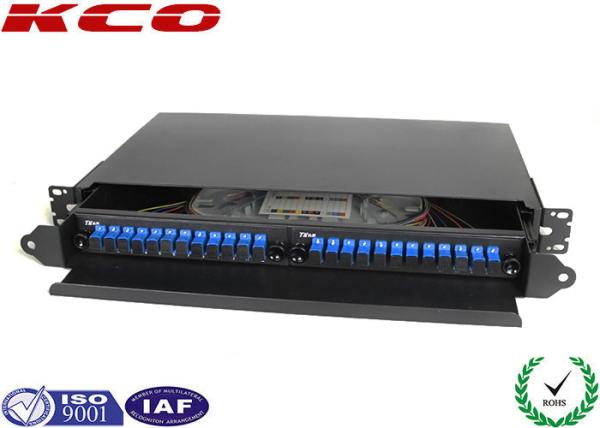

Product picutures:


Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa

Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss ≤0.2dB
- Insert loss ≤0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)

Parameters:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
