KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail
KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail
KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail
KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail
KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail
KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-FTB16D
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
20,000 pcs/ month
Delivery Time :
7~14 days after get payment
Packaging Details :
carton box, wooden pallet
Material :
Steel tape
Cable Port :
2 cable ports
Splitter :
1x2, 1x4, 1x8, 1x16
Adapter :
SC/UPC or SC/APC
Application :
Outdoor, Wall mount, Pole mount
Capacity :
16 cores
Description

KCO-FTB16D Fiber Optic Terminal Box 16 Ports For FTTH With SC/APC Adapter And Pigtail​

Over View:

- Kocent Optec Limited provides OEM and ODM service for all type all size of steel tape metallic fiber optic terminal box.
- Our steel tape metallic fiber optic terminal box series include:
+ Fiber optic distribution frame: 144 cores, 288 cores, 576 cores, 720 cores, 960 cores, 1152 cores, ...
+ Fiber optic rack mount terminal box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Fiber optic ODF Unit Box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Fiber Optic Patch Panel: Fix type, rotating type, sliding type
+ Indoor wall mount fiber optic distribution box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Outdoor wall mount fiber optic distribution box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
- The OTB (Optical Terminal Box) or FTB ( Fiber Terminal Box) is used for the connection of optical fibers, and protecting the connector of fiber splice. It is suitable for wall-mounted indoor.
- KCO-FTB08D support to connect 8 cores of fiber. The adapter port can do SC, LC, FC, ST, ...to meet customer request.
- New design: the lock button design is easy to open and close the door, convenient to install and manage the fibers. They are suitable for indoor wall mounted using.
Applications
- Applicable for the FTTX project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.
- The boxes are typically used on walls inside/outside the customer’s premises in the termination part of the access network.
Design Drawing:
KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail

Size:

Model Capacity Dimension Remark
KCO-FTB04D 4 cores 140x130x36 mm 1pc cable port, 4 adapter ports
KCO-FTB08D 8 cores 200x165x40 mm 2pcs cable ports, 8 adapter ports
KCO-FTB12D 12 cores 245x200x60 mm 3pcs cable ports, 12 adapter ports
KCO-FTB16D 16 cores 245x200x60 mm 3pcs cable ports, 16 adapter ports

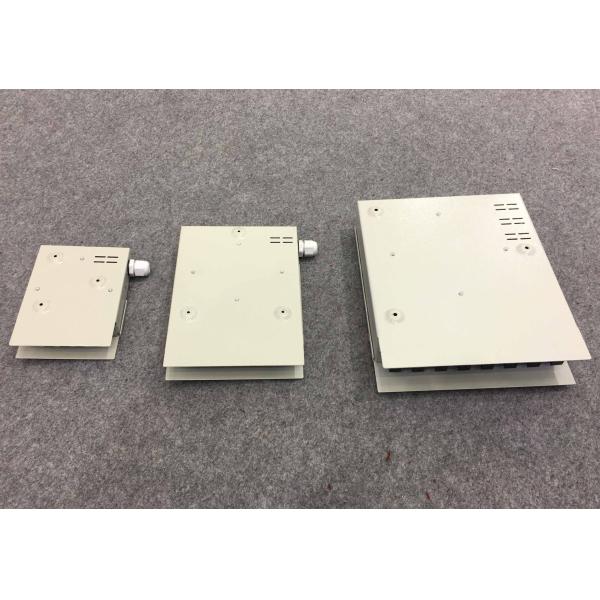

Product photo:

KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail

KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail

KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail

KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail

KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail

Related Products:

KCO-FTB16D Wallmountable Fiber Optic Terminal Box 16 Ports With SC Adapter And Pigtail

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
