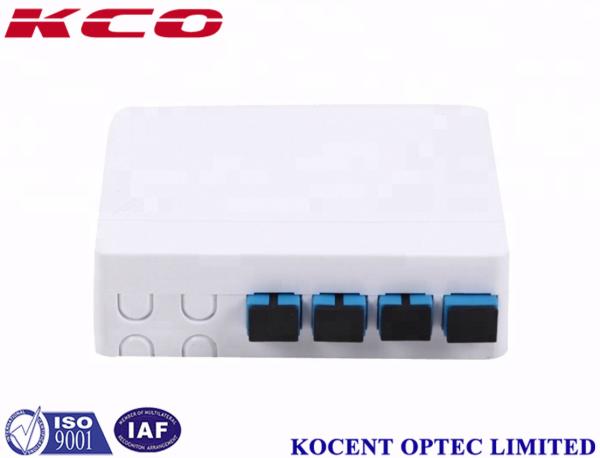

4 Port Fiber Optic Termination Box Wallmount Socket 4 Core FTTH FTTB SC FC LC ST E2000

Description:

- KCO-FTB04B adopts a compact plug-in design, combines a Integration, Multi-function, Modern design concept.

- It is of a graceful appearance and applicable for FTTX network, and easy use in different installation environments.

- The clasp design of the cover has greatly reduced the installation strength.

- The box fit for FC, SC, ST, LC (duplex) adaptor, with good bending protection.

- It is the termination for optical fiber user, specially designed to construct FTTH.

- It can be installed at the corridors and multi-media cases for optical fiber users.

- The methods of coldly-connected or hot-melted can be used to connect the optical ends, and transmit the light by the adapterd or end of fiber to the ONU of terminal user.

- The Products are in fine property, and universal for user. It is widely applied in FTTX, LAN, Cable TV, and other telecom systems.

Features

- Applicable for FTTH, FTTO an FTTD, etc., and allows easy use in different installation environments.

- The clasp design of the cover has greatly reduced the installation strength.

- It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling

for optical cables.

- Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users.

- All SC and SC/FC are usable.

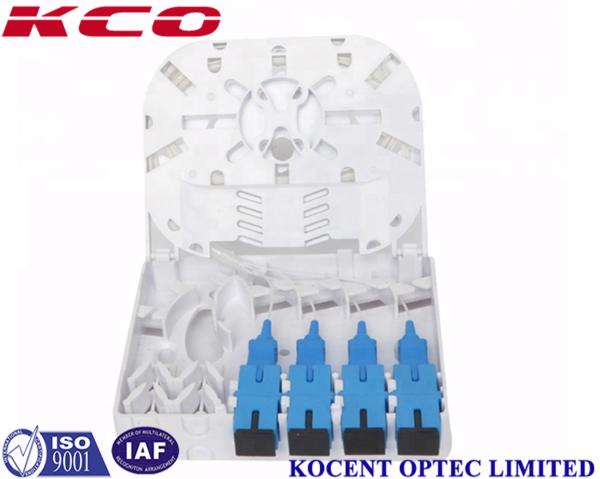

- The big-diametered wrapping post in the box protects radically in an omnibearing way.

- Accommodation of 4 adapters (SC simplex /LC duplex)

- 4 cable entries

- With one splice tray

- Two input cable ports

Operating Conditions:

- Temperature -45~+85

- Relative humidity ≤85%(+30 C)

- Atmospheric pressure 70KPa~106KPa

Qualification:

- Nominal work wave-length: 850nm,1310nm,1550nm

- Connectors loss ≤0.2dB

- Insert loss ≤0.2dB

- Return loss >=50dB(UPC),>=60dB(APC)

- Insulation resistance (between frame and protection

- Grounding) >1000MΩ/500V(DC)

Parameters:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
