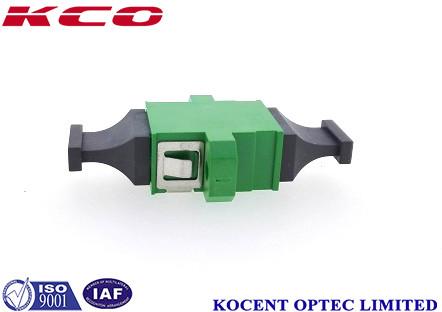

Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor
Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor
Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor
Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor
Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor
Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor
Specifications
Brand Name :
kCO, Kocent Optec Limited
Model Number :
MPO-adt
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500,000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
Carton box, wooden pallet
Material :
Plastic
Durability :
0.3dB
IL :
0.3dB
Wave length :
1260~1650nm
Type :
MPO-MPO
Operating Temperature :
-40~+70 degree
Description

Up to Down MPO/APC Single Mode Simplex With Flange Fiber Optic Adapter MTP Adaptor Green

Descriptions:

- MPO adapter is adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

- MTP Connector Adapter has a SC Footprint, Reduced Flange, is Aqua, and comes with 2 Dust caps.

- Adapter body is made of Polyethermide, the spring clip is made of stainless steel, and the dust cap is made of polycarbonate, all to reduce the potential for debris generation.

- The MPO adapter comes standard in black for plastic or metal housing for die cast.

- Configured with an Opposed Key Orientation, meaning that the connectors are key-up to key-down.
- Works for any MTP Connector from 4 fiber to 72 fiber.
- Widely used in trunk cabling and casettes,
*- Meets appropriate standards and is perfect for your paralell optics and MTP Adapter needs.

Features:


- Ceramic or Bronze Sleeve

- PC, APC, UPC optional

- Simplex / Duplex, Hybrid adapter Optional

- Meet IEC 61754-7 and TIA/EIA 604-5 standards for MPO/MTP interfaces


- Internal shutter is available


- Keyway available for key-up to key-up or key up to key down

- Low insertion loss, high return loss

- High precision of mechanical dimensions

- High reliability & stability

Applications:

- Widely used in the ODF, Telecommunication networks

- Optical communication system

- Optical instruments measuring appliance

- Optical fiber sensor

- CATV

- Active device termination

- Telecommunication networks

- Metro

- Local Area Networks (LANs)

- Data processing networks

- Test equipment

- Premise installations

- Gigabit Ethernet

- Video

Product pictures:

Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor

Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor

Specifications

Housing UL-Rated Plastic or Die Cast
Clip & Shutter Stainless Steel
Durability < 0.3dB change, 500 mating cycles
Operating Temperature -40℃~+70℃
Storage Temperature -40℃~+85℃

Environment and Mechanical

Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%,96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC ≤0.2dB
Storage Temperature -40ºC to +85ºC ≤0.2dB

Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

Single Mode Simplex MPO MTP Adapter , Up to Down MTP APC Terminal Green Adaptor
