6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box
6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box
6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box
6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box
6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box
6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box
Specifications
Brand Name :
KCO
Model Number :
KCO-DIN-6DSC-LC4-OM4
Certification :
ISO9001, RoHS, UL
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20000pcs/month
Delivery Time :
5-days
Packaging Details :
Carton box, wooden pallet
Material :
Steel Tape/aluminium alloy
Port number :
6 ports
Adapter :
SC Duplex, LC 4 ways
Pigtail :
SC pigtail, LC pigtail
IL :
0.2dB
RL :
55dB
Description

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

Description:

- Kocent Optec Limited provides OEM and ODM service for all type all size of steel tape metallic fiber optic terminal box.
- Our steel tape metallic fiber optic terminal box series include:
+ Fiber optic distribution frame: 144 cores, 288 cores, 576 cores, 720 cores, 960 cores, 1152 cores, ...
+ Fiber optic rack mount terminal box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Fiber optic ODF Unit Box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Fiber Optic Patch Panel: Fix type, rotating type, sliding type
+ Indoor wall mount fiber optic distribution box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores
+ Outdoor wall mount fiber optic distribution box: 12 cores, 24 cores, 36 cores, 48 cores, 72 cores, 96 cores, 144 cores

- Dinrail Fiber terminal Box is metal box special designed to be snapped on din rail.

- It use in fiber optic cabinet.

- Need to come with a standard 19'' Dinrail frame.

- Dinrail fiber box accepts one modular panel making it ideal for smaller fibre count applications of up to 24 fibers.

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

Product details

Product name mountable din fiber box 6 SC duplex
Connector Type Singlemode or multimode
Size 129*130*40MM
Adapter SC Duplex or LC Quad
Connector SC or LC
Material cold rolled steel/ aluminium alloy
Application toll systems and environmental monitoring equipment
Color Grey / White
Warranty limited life
Product Keywords 6SC Duplex fiber optic din rail, fiber din rail box, din rail wall mounted fiber optic

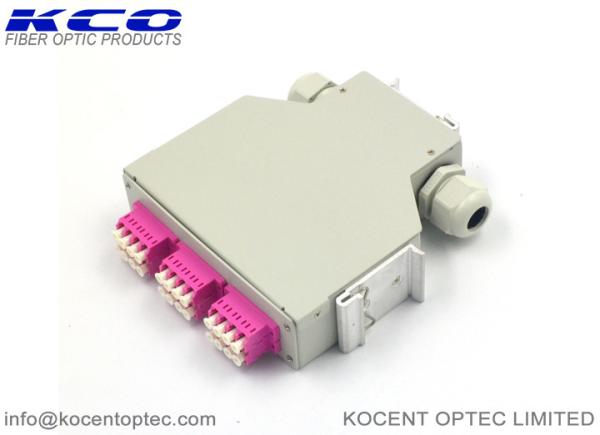

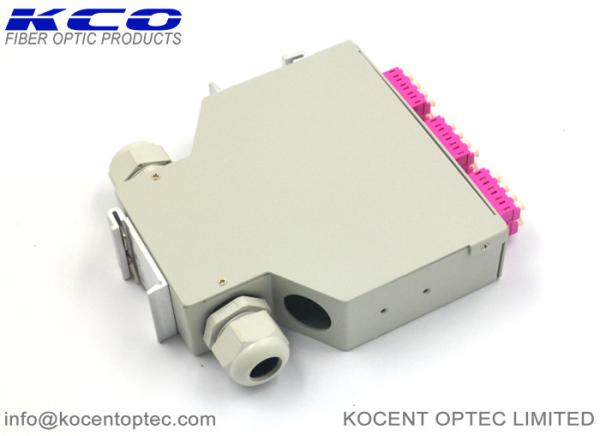

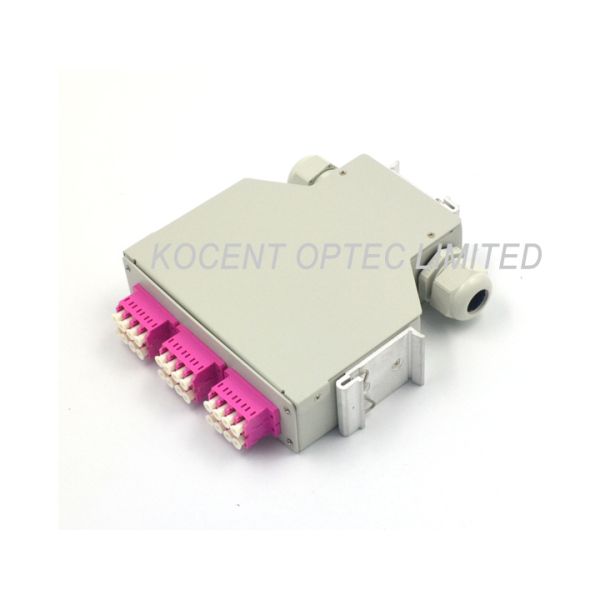

Product photo:

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

Feature:

Cold-roll steel, electrostatic painting or aluminium alloy (as customer request)

Suitable for different adapters: FC, SC, ST, LC …

Max. 6pcs adapters can be loaded

Integrated splice holders (fusion splices)

2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports

IP20 protection

Rear or aside DIN rail fixation

Black/ Grey color for optional.

Dimensions: 125*130*35mm

Packing: 30pcs/carton/33*33*33cm/15kg

Application:

Suitable for Pigtail, ribbon and bunch cable connect distribution

Used for wall-mounted applications

Used in FTTH,

Telecommunications,

CATV etc...

Size:

Box size 128.8*130*35mm
Packing box size 165*155*45mm
Net Weight About 0.8kg

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

Advantages of din rail fiber optic splice terminal box:

- Din rail fiber optic splice termibal box is metal or plastic box that special designed to be snapped on din rail in the fiber optic distribution frame. It have easy to install and maintain, save more space.

- Din rail fiber optic splice terminal box accepts one modular panel making it ideal for smaller fiber count application.

- It is dustproof design, suitable for rack dustproof installaltion.

- Din rail fiber optic splice termibal box is compatible for most adaptors.

- It can be widely applied for distribution and end connection of indoor cables.

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

6 Port LC Quad Adapter OM4 DIN RAIL Splice Box / 24 Cores Fiber Optical Termination Box

Q: What is your best price?

A: Based on the quantity of our products and the quantity of your order, we would quote the best matcing price all the time.

Q: Can you provide OEM and ODM serveice?

A: KCO with more than 10 years of experience in OEM service, we get many OEM order about fiber optic products. If you have request to make a your own design with your own LOGO of fiber optic product, please contact with our sales team to get best support.

Q: What is your MOQ?

A: Sample not quantity request, bulk order: at least 100pcs/ model.


Q: What is the lead time of my order?
A: Sample order: 3-5days, mass production order: 1-2weeks.


Q: Can I get a free sample?
A: New customer is not acceptable.


Q: How about the warranty?
A: 1 year for most products.

Q: How do you ship the goods to us?

A: - Sample / Small Order: DHL / TNT / UPS / Fedex / EMS / Aramex / SF Express, ...

- Mass Production Order: by air / by sea

- Standard Export Port: Ningbo / Shenzhen

Q: Can you list some of your main customers?

A: Dosmetical customers include: Huawei, ZTE, Fiberhome, China Telecom, China Mobile, ... Abroad customers include: TE, Commscope, Cisco, Cerizon, Smart, ...

Q: Why choose KCO to cooperate?

A: - Reliable and exprerienced communication equipment manufacturer for more than 10 years.

- First-class production line and strict quality management system.

- Professional procedure system and bulk production capacity to guarantee fast delivery time.

- Most competitive price to meet your budget.

- Professional RD team to design and innovate new products ased on our rich experience.

- Fast and Effective after sales service.
