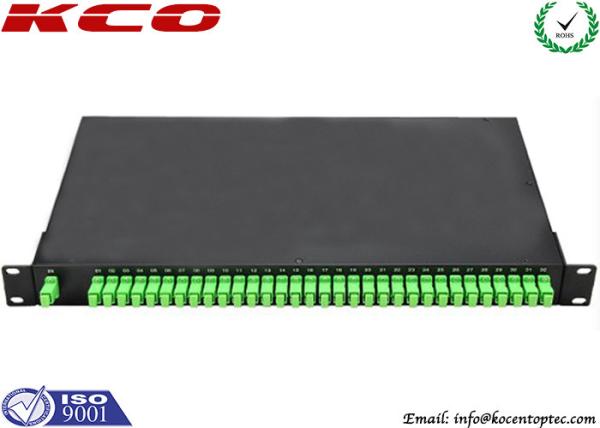

Rack Mounted Single Mode Fiber Splitter PLC 1*32 G657A1 Passive Fiber Optic Splitter 1x32 Patch Panel
Rack Mounted Single Mode Fiber Splitter PLC 1*32 G657A1 Passive Fiber Optic Splitter 1x32 Patch Panel
Rack Mounted Single Mode Fiber Splitter PLC 1*32 G657A1 Passive Fiber Optic Splitter 1x32 Patch Panel
Rack Mounted Single Mode Fiber Splitter PLC 1*32 G657A1 Passive Fiber Optic Splitter 1x32 Patch Panel
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
PLC-RM-1x32-SCA
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
20,000 set/ month
Delivery Time :
5~8 days after get payment
Packaging Details :
Carton box, wooden pallet
IL :
16.5 dB
Port :
1 to 32
Connector :
SC/APC, LC/APC or customized
RL :
>55dB
Cable length :
1.0m, 1.5m or customized
Wave length :
1260~1650nm
Description

Rack Mounted Single Mode Fiber Splitter PLC 1*32 G657A1

Passive Fiber Optic Splitter 1x32 Patch Panel

Features:

- It is fit with 19'' standard fiber optic cabinet.

- Size: 1U

- Type: 1x32 / 2*32

- Connector type: SC/APC connector or customized
- Good channel-to-channel Uniformity
- High Polarization Extinction Ratio
- Low Input Polarization Sensitivity, Insertion loss≤13.9dB, PDL≤0.3dB
- Compact design, Custom and Rugged Packaging Available
- Operating temperature : -40°C to +85°C
- Operating bandwidth: 1260~1650nm
- Meet Telcorida GR-1209/ 1221 Qualified

- 1U Rack Mount Fiber PLC Splitter supports SC, LC, FC & ST connectors for choice.

Descriptions:
The 1U Rack Mount type adopts 1U frame, or customize according to actual requirement. It can be installed in ODF canonically and syncretize with appreance of box/ cabinet body via canonical fiber distribution.

Fiber optic PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers.

It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

We provides a various of 1×N and 2×N PLC splitters, including 1x2 to 1x64 and 2x2 to 2x64 1U Rack Mount type fiber PLC splitters.

They are all with superior optical performance, high stability and high reliability to meet various application requirements.

Rack Mount PLC Splitter Applications:
- Optical Signal Distribution
- Data Communications
- LAN and CATV System
- FTTX Deployment
- FTTH Network
- Passive Optical Networks (PON)
- Outside Plant Equipments
- DWDM and CWDM systems

Rack Mount PLC Splitter Features:
- Configuration Type: 1x16, SC/APC connector or customized
- Good channel-to-channel Uniformity
- High Polarization Extinction Ratio
- Low Input Polarization Sensitivity, Insertion loss≤13.9dB, PDL≤0.3dB
- Compact design, Custom and Rugged Packaging Available
- Operating temperature : -40°C to +85°C
- Operating bandwidth: 1260~1650nm
- Meet Telcorida GR-1209/ 1221 Qualified

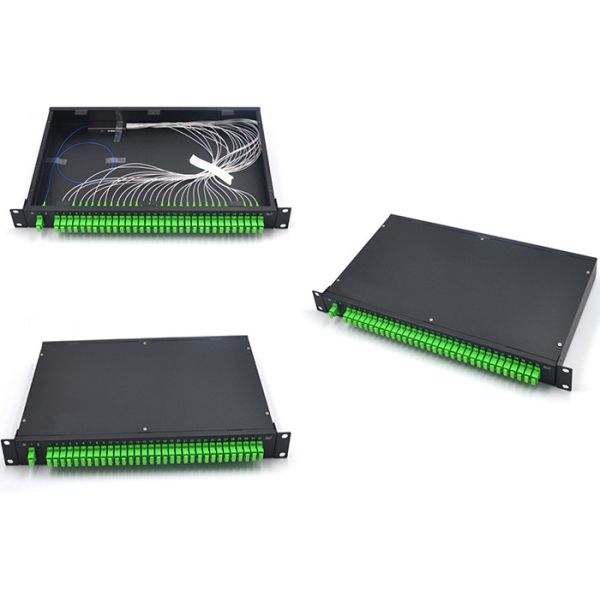

Rack Mount PLC Splitter Product Pictures:


Rack Mounted Single Mode Fiber Splitter PLC 1*32 G657A1 Passive Fiber Optic Splitter 1x32 Patch Panel


Rack Mount PLC Splitter Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
