1*8 2*8 Fiber Optic Splitter Patch Panel / 1x8 2x8 Rack Mount Passive PLC Splitter SC FC
1*8 2*8 Fiber Optic Splitter Patch Panel / 1x8 2x8 Rack Mount Passive PLC Splitter SC FC
1*8 2*8 Fiber Optic Splitter Patch Panel / 1x8 2x8 Rack Mount Passive PLC Splitter SC FC
1*8 2*8 Fiber Optic Splitter Patch Panel / 1x8 2x8 Rack Mount Passive PLC Splitter SC FC
1*8 2*8 Fiber Optic Splitter Patch Panel / 1x8 2x8 Rack Mount Passive PLC Splitter SC FC
1*8 2*8 Fiber Optic Splitter Patch Panel / 1x8 2x8 Rack Mount Passive PLC Splitter SC FC
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
PLC-RM-1x8-SCU
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
20,000 set/ month
Delivery Time :
5~8 days after get payment
Packaging Details :
Carton box, wooden pallet
Type :
1U Rack mount type
IL :
10.2 dB
Port :
1 to 8
Connector :
SC/UPC or customized
Wave length :
1260~1650
Cable length :
1.0m
Description

1*8 2*8 Fiber Optic Splitter Patch Panel / 1x8 2x8 Rack Mount Passive PLC Splitter SC FC

Overview:
- The 1U Rack Mount type adopts 1U frame, or customize according to actual requirement.
- It can be installed in ODF canonically and syncretize with appreance of box/ cabinet body via canonical fiber distribution.
- 1U Rack Mount Fiber PLC Splitter supports SC, LC, FC & ST connectors for choice.
- Rack Mount type or Patch Panel type fiber optic PLC Splitter 1x8 is also called fiber optic PLC Splitter 1*8, fiber optical PLC Splitter, optical fiber PLC Splitter, PLC fiber optic splitter or plc optical fiber splitter.
- We can supply the 1U rack mount type plc fiber splitter upload with SC/UPC connector, SC/APC connector or as customer request.

Applications:
- FTTX Deployment ( FTTA, FTTB, FTTO, FTTP, FTTH, ...)
- Optical Signal Distribution
- Data Communications
- LAN and CATV System
- Passive Optical Networks (PON)
- Outside Plant Equipments
- DWDM and CWDM systems

Features:
- Good channel-to-channel Uniformity
- High Polarization Extinction Ratio
- Low Input Polarization Sensitivity, Insertion loss≤13.9dB, PDL≤0.3dB
- Compact design, Custom and Rugged Packaging Available
- Operating temperature : -40°C to +85°C
- Operating bandwidth: 1260~1650nm
- Meet Telcorida GR-1209/ 1221 Qualified

Product Pictures:

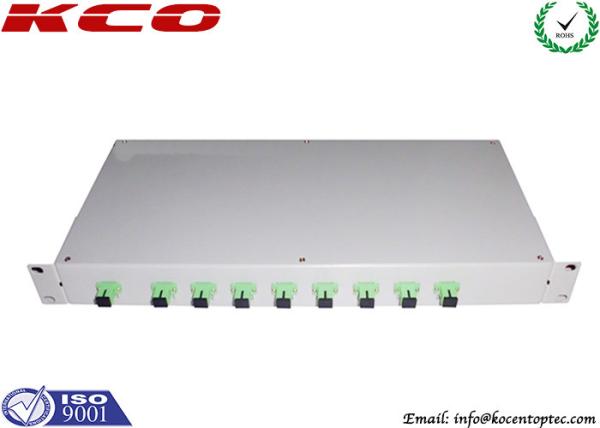

1*8 2*8 Fiber Optic Splitter Patch Panel / 1x8 2x8 Rack Mount Passive PLC Splitter SC FC

Rack Mount PLC Splitter Specifications:

Fiber length1m or custom length
Connector TypeCustom specified
Optical Fiber TypeCorning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min *55
Return Loss (dB) Min *55 (50)
Power Handling (mW)300
Operating Wavelength (nm)1260 ~ 1650
Operating Temperature(°C)-40~ +85
Storage Temperature(°C)-40 ~ +85
Port Configuration1x21x41x81x161x321x64
Insertion Loss(dB) Typical3.67.110.213.516.520.5
Insertion Loss (dB) Max4.07.310.513.716.921.0
Loss Uniformity (dB)0.60.60.81.21.52
PDL(dB)0.20.20.20.250.30.35
Wavelength Dependent Loss(dB)0.30.30.30.50.50.5
Temp. Dependent Loss (-40~85 ) (dB)0.40.40.40.50.50.5
Port Configuration2X22X42X82X162X322X64
Insertion Loss(dB) Typical3.87.410.814.21721
Insertion Loss (dB) Max4.27.811.214.617.521.5
Loss Uniformity (dB)11.41.522.52.5
PDL (dB)0.20.20.40.40.40.5
Wavelength Dependent Loss(dB)0.80.80.80.80.81
Temp. Dependent Loss(-40~+85°C)0.50.50.50.80.81


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
