ABS Box Type 1x16 Fiber PLC Splitter / ABS Modular Optical Splitter For Terminal Splitter Box
ABS Box Type 1x16 Fiber PLC Splitter / ABS Modular Optical Splitter For Terminal Splitter Box
ABS Box Type 1x16 Fiber PLC Splitter / ABS Modular Optical Splitter For Terminal Splitter Box
ABS Box Type 1x16 Fiber PLC Splitter / ABS Modular Optical Splitter For Terminal Splitter Box
Specifications
Brand Name :
KCO
Model Number :
PLC-LCA-1x16 or PLC-SCA-1x16
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50,000 pcs/ month
Delivery Time :
3~7 days after payment
Packaging Details :
Carton box
Type :
1x16
Connector :
LC/APC,SC/APC
Fiber :
9/125 um SMF-28e or customer appoint
Fiber Length :
1.0m
Cable diameter :
2.0mm, 3.0mm
ABS plastic box size :
120x90x18mm
Insertion loss :
16.2dB
PDL(Max.) :
0.3dB
Return loss :
55dB
Uniformity (Max.) :
1.5dB
Description

ABS Box Type 1x16 Fiber PLC Splitter

ABS Modular Optical Splitter For Terminal Splitter Box

Overview:

- PLC splitter is available in 1*N and 2*N:

1*N = 1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits.

2*N = 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits.

- Un-connectorized.

- Fiber jacketing outside ABS boxes is 1.6mm, 1.8mm, 2.0mm and up to 3mm.

- Pigtail lenght: 0.5m, 1.0m, 1.5m, ...

- ABS box type or inside metal box/module cassette type.

- Connector type: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, ect

- Custom connector configurations and combinations.

Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Telcordia GR-1221 and GR-1209.

Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.

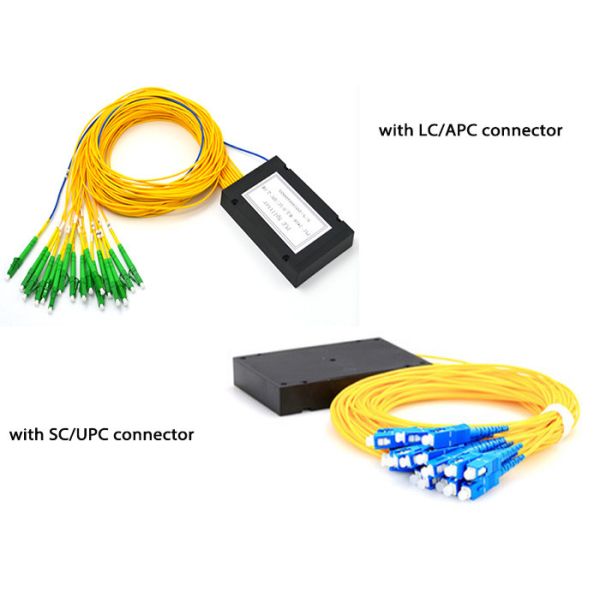

Product picture:

ABS Box Type 1x16 Fiber PLC Splitter / ABS Modular Optical Splitter For Terminal Splitter Box

Fiber optic PLC Splitter Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
