KCO-H22120 Outdoor FTTH Optical Fiber Splice Enclosure Junction Box

2in 2out 12fo 24fo 48fo 96fo

Description:

- Fiber Optic Splice Joint Box is designed for configuration flexibility, these closures offer expanded slack storage, various tray heights and mass platform storage.

- High quality PC, ABS, PPR material optional , can endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
- Used in straight-through and branch application for cables of bundle fiber and ribbon fiber
- Trays can be increased or reduced according to the application
- Cylinder shape, perfect outline, thunder, erosion & aging resistance
- Strong and reasonable structure with mechanical sealing structure filled with silicon rubber material, it can be opened after sealing and can be reused
- Solid structure, easy to operation and maintain
- Well water & dust proof
- Suitable for aerial, duct, wall-mounted or buried
- Unique grounding device to ensure the sealing performance, and at the same time easy and convenient for installation.

Features
- The main body is made of superior engineering plastic-polycarbonate materials.

- The entry and exit points of optical cables are equipped with airtight seals to ensure airtight performance of the cabinet.

- External structural components and fastening components are made of stainless steel with good anti-erosion and anti-aging performance.
- It adopts dual cable press technology to ensure there is no additional signal wastage or overheads within the cabinet.
- Optical cables that go in or come out of the cabinet can be connected or broken off.
- Suitable for laying direct and breakout splice of overhead, pipe bulletin, and underground pipe also protect the connector with multiplexing and expansion functions

Quick detail:

- Name: Inline/ Horizontal Type Fiber Optic Enclosure Box

- Part number: KCO-H22120

- Size: 460*200*120mm

- Weight: about 1.8kg

- Cable entry port: 4 ports

- Capacity of fibers: 144 cores

- Splice tray number: max. 4 trays

- Material: PC

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃

- Packing: 10pcs/ carton box

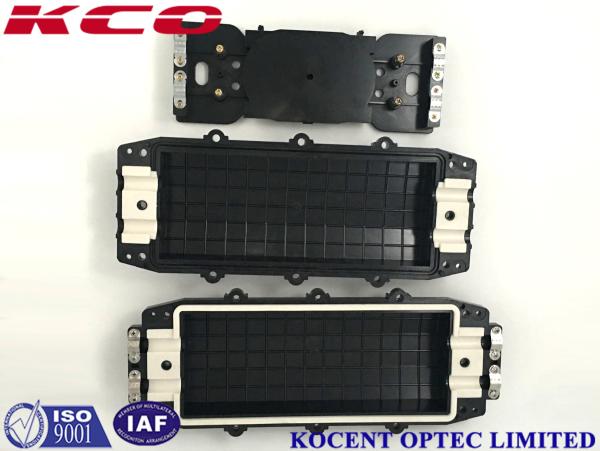

Product pictures:

Main parts:

Accessories list:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
