144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH
144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH
144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH
144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH
144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH
144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-H22120
Certification :
iSO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5,000pcs/week
Delivery Time :
5~14 working days
Packaging Details :
Carton box, wooden pallet
Type :
Inline type
Cable ports :
4 ports
Cable diameter :
8.0~22.0mm
Min. capacity :
4 cores
Max capacity :
48 cores
Material :
PPR, ABS, PC, PP
Description

KCO-H22120 FTTH 144 Cores Fiber Optic Splice Closure Joint Box PC Material IP65​

Description:

- Kocent Optec Limited supplys many types of Dome and Inline fiber optic splice closure.

- Horizontal (inline) fiber optic splice closures are made of excellent engineering plastics.

- It is used for the outdoor connection between optical distribution cable and optical inroom cable.

- Available for aerial,duct,direct buried application.

- Fiber Optic Splice Closures is used for protective connection of two or multiple optical cable and optic fiber distribution.

- It is one ofcommonlyused equipment of user access point.

- We supply different ports types, fittings and different fiber optic core numbers for horizontal fiber optic splice closures.
- The Splice Closure is suitable for protecting optical fiber splices in straight through and branching applications, and can be used in aerial, duct and direct buried fiber optic cable projects.

Features:

- Water-proof product: IP65

- Ageing resistance & ultraviolet radiation resistance
- Advanced internal structure design
- Easy and fast to fix fiber cable
- Easy and fast to increase and reduce.
- The closure is spacious enough for winding and storing fibers

Operating/Storage Temperature:-40 to +70°C

Quick detail:

- Name: Inline/ Horizontal Type Fiber Optic Enclosure Box

- Part number: KCO-H22120

- Size: 460*200*120mm

- Weight: about 1.8kg

- Cable entry port: 4 ports

- Capacity of fibers: 144 cores

- Splice tray number: max. 4 trays

- Material: PC

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃

- Packing: 10pcs/ carton box

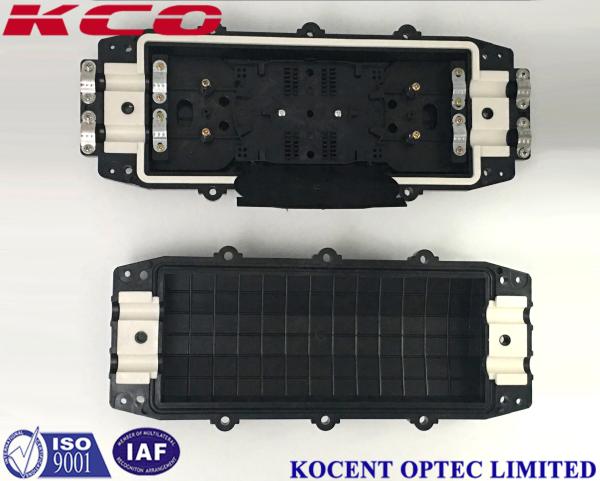

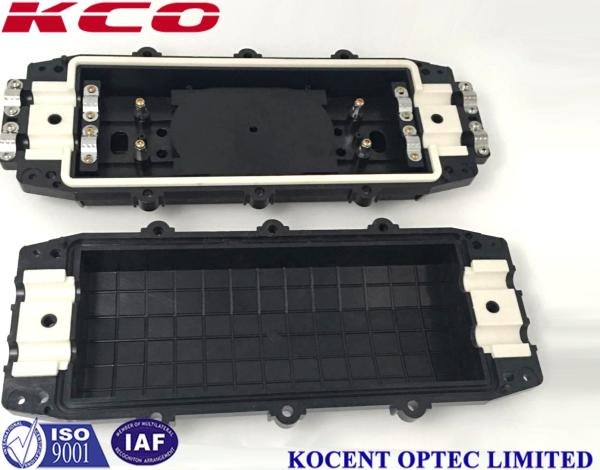

Product pictures:

144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH

144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH

Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user

Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

144 Cores 2in 2 out Fiber Optical Splice Closure Joint Box PC Material IP65 KCO-H22120 FTTH
