Mini Size Aerial Fiber Optic Joint Closure Box 6 8 12 Cores KCO-A-2-2-01 FTTH GPON
Mini Size Aerial Fiber Optic Joint Closure Box 6 8 12 Cores KCO-A-2-2-01 FTTH GPON
Mini Size Aerial Fiber Optic Joint Closure Box 6 8 12 Cores KCO-A-2-2-01 FTTH GPON
Mini Size Aerial Fiber Optic Joint Closure Box 6 8 12 Cores KCO-A-2-2-01 FTTH GPON
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-A-2-2-01
Certification :
iSO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5,000pcs/week
Delivery Time :
5~14 working days
Packaging Details :
Carton box, wooden pallet
Type :
Inline type
Cable ports :
4 ports
Cable diameter :
8.0~22.0mm
Min. capacity :
4 cores
Max capacity :
48 cores
Material :
PPR, ABS, PC, PP
Description

FTTH GPON Aerial Fiber Optic Joint Closure Connection Box 12 Cores KCO-A-2-2-01

Descriptions:

- Name: Aerial Optical Fiber Splice Enclosure Connection Box

- Application: Outdoor, Aerial

- Part number: KCO-A-2-2-01

- The fiber optic splice closure is used in the field of cable network, overhead pipe, buried wiring connection or joint protection equipment.
- All property indexes are in accordance with National YD/T814-1996 Standard.
- The case body is made from imported high-intensity engineering plastics (ABS or ABS+PC) and formed the shape with mould plastics under high pressure.

- It is in the shape of half rectangle, with the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck andlong service life.
- The case body and cable entrance are sealed with adhesive rubber strip(non-vulcanized) andsealed tape.

- Reliable sealing capability.

- It can be re-opened and easy to maintain.

Quick informations:

- Name: Aerial Optical Fiber Splice Enclosure Connection Box

- Application: Outdoor, Aerial

- Part number: KCO-A-2-2-01

- Color: Black

- Material: ABS / PC Plastic

- Cable entry port: 4 ports

- Capacity of fibers: 24 cores

- Splice tray number: max. 1 trays

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃

- Size: 265*215*35mm

- Weight: about 1.0kg

- Packing: 20pcs/ carton box

Applications:

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.

- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

Features:

- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting

- Great water-proof function.

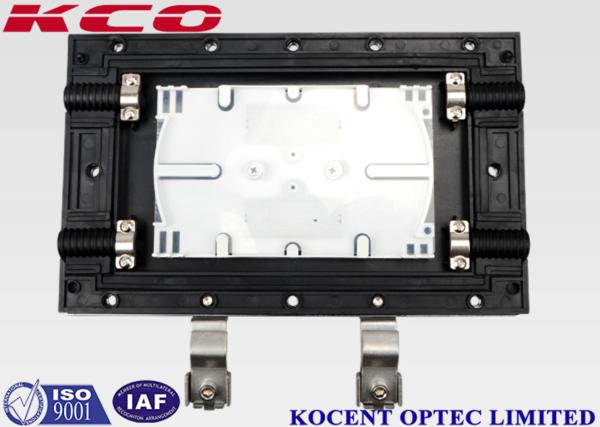

Product pictures:

Mini Size Aerial Fiber Optic Joint Closure Box 6 8 12 Cores KCO-A-2-2-01 FTTH GPON

Mini Size Aerial Fiber Optic Joint Closure Box 6 8 12 Cores KCO-A-2-2-01 FTTH GPON

Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user

Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
