High Capacity Horizontal / Inline 144 Core Madidi Fiber Optic Splice Closure Joint Box​​
High Capacity Horizontal / Inline 144 Core Madidi Fiber Optic Splice Closure Joint Box​​
High Capacity Horizontal / Inline 144 Core Madidi Fiber Optic Splice Closure Joint Box​​
High Capacity Horizontal / Inline 144 Core Madidi Fiber Optic Splice Closure Joint Box​​
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
Madidi-ZT-Z15
Certification :
iSO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5,000pcs/week
Delivery Time :
5~14 working days
Packaging Details :
Carton box, wooden pallet
Type :
Inline type, Horizontal type
Cable ports :
2 in 2 out
Cable diameter :
8.0~22.0mm
Min. capacity :
4 cores
Max capacity :
144 cores
Material :
PPR, ABS, PC, PP
Description

Big Capacity 144 Fibers FO Inline Madidi-ZT-Z15 Optical Fiber Splicing Closure Joint Box​​

Introduction:
- Optic fiber clousure is applied in the junction and protecting of the fiber.

- It can be place with the aerial cable or buried in earth or put in the pipeline.

- The outer part and the fusing part of the clousure are made of the project plastic.

Quick detail about horizontal fiber optic splice closure:

- Name: Madidi fiber optic splice closure box.

- Part number: Madidi-ZT-Z15

- Cable entry port: 4 ports

- Capacity of fibers: 144 cores

- Splice tray number: max. 6 trays

- Material: ABS/ PC/PPR/PP Plastic

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃

- Size: 670*240*200mm

- Weight: about 5.9kg

- Packing: 4pcs/carton


Applications:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.

Features:

- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting

- Great water-proof function.

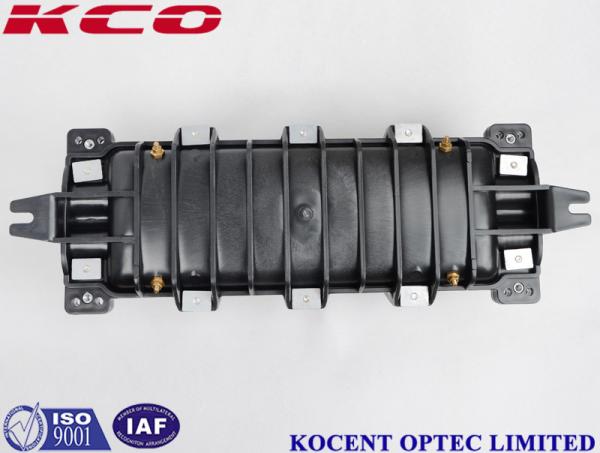

Product pictures:

High Capacity Horizontal / Inline 144 Core Madidi Fiber Optic Splice Closure Joint Box​​

High Capacity Horizontal / Inline 144 Core Madidi Fiber Optic Splice Closure Joint Box​​

Madidi Series Fiber Optic Splicing Closure Joint Box

P/N Color Cable port Size Weight Splice Tray Number Capacity
Madidi-ZT-Z13 Red 2 in 2 out 480*160*105mm 2.2kg Max 4 trays 96 cores
Madidi-ZT-Z14 Black 2 in 2 out 480*160*105mm 2.2kg Max 4 trays 96 cores
Madidi-ZT-Z15 Black 2 in 2 out 670*240*200mm 5.9kg Max 6 trays 144 cores

Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user

Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
