Outside 1x32 Fiber Optic Splice Closure Box 2 In 2 KCO-GJS114
Outside 1x32 Fiber Optic Splice Closure Box 2 In 2 KCO-GJS114
Outside 1x32 Fiber Optic Splice Closure Box 2 In 2 KCO-GJS114
Outside 1x32 Fiber Optic Splice Closure Box 2 In 2 KCO-GJS114
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-GJS114
Certification :
iSO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5,000pcs/week
Delivery Time :
5~14 working days
Packaging Details :
Carton box, wooden pallet
Type :
Inline type, Horizontal type
Cable ports :
6 in 8 out
Cable diameter :
8.0~22.0mm
Min. capacity :
4 cores
Max capacity :
96 cores
Material :
PPR, ABS, PC, PP
Description

Outside 1x32 Fiber Splitter Splice Closure Box 2 In 2 Out Water Proofing KCO-GJS114

Quick detail about horizontal fiber optic splice closure:

- Name: Fiber Splitter Splice Closure Box 2 In 2 Out

- Part number: KCO-GJS114

- Size: 460*220*100mm

- Weight: about 3.0kg

- Cable entry port: 2 ports

- Cable out port: 2 ports

- Capacity of fibers: 48 cores

- Splice tray number: max. 2 trays

- Can Install: 1x2 Splitter, 1x4 Splitter, 1x8 Splitter, 1x12 Splitter, 1x16 Splitter, 1x24 Spitter, 1x32 Splitter, etc

- Material: ABS / PC Plastic

- Packing: 10pcs/ carton box

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃


Applications:
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.

Features:

- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting

- Great water-proof function.

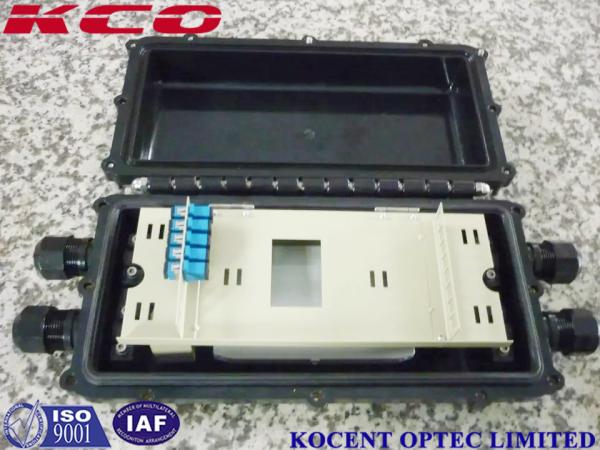

Product pictures:

Outside 1x32 Fiber Optic Splice Closure Box 2 In 2 KCO-GJS114

Outside 1x32 Fiber Optic Splice Closure Box 2 In 2 KCO-GJS114

Outside 1x32 Fiber Optic Splice Closure Box 2 In 2 KCO-GJS114

Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user

Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
