24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation
24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation
24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation
24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation
24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation
24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-GCYFY
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
PE
Name :
Outdoor Duct Cable
Length :
2km~3km each roll
Application :
outdoor or customized
Fiber :
single mode, multimode, OM3, OM4, OM5
Cores :
4 cores to 24 cores or more
Description

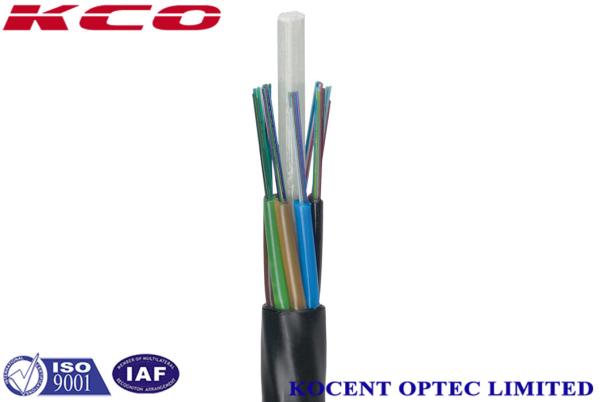

24 Core FTTX Air Blown Micro Fiber Optic Cable Single Mode 9/125 G652D

Description:

Air-blowing micro cable technology is for optical cable installation by air-blowing method. This system can be applied to any network construction. The technology of this system is to use air to blow HDPE guided tubes into a buried HDPE or PVC duct. Then the micro non-metallic optical cable is installed by air-blowing into the guided tube. This method has a breakthrough over the limit of present cable bury technology and increases the usage efficiency of cable duct. And it also easily makes the cable branching and enlarges the cable capacity in all direction.

Advantages of optic fiber cable:

1. High dense fiber count; Repeated use of guided tube; Efficient use of duct resource.

2. Air blowing micro fiber optic cable as business increases, meet customer’s needs in time.

3. Leave space for new type fiber optic fiber and keep ahead in technology.

4. Easily enlarge capacity in all direction, lessen construction work and save in construct expense.

5. Fast installation of micro fiber optic cable by air-blowing and with long distance.Largely increase the bury efficient.

24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation

Application of optic fiber cable:

- Adoped to backbone network

- Underground network

- Access network

- FTTH Fiber to the home.

24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation

Parameters of optic fiber cable

Structure No. of fibers Nominal Diameter (mm) Nominal Weight (kg/km) Allowable Tensile Load (N) Minimum Bending Radius (mm) Allowable Crush Resistant (N/10cm)
Short term Long term Static Dynamic Short term Long term
Central tube 2~12 4.0 12 150 60 80 40 4500 1500
14~24 4.4 14 150 60 90 45 4500 1500
Stranded 24 5.6 23 500 150 120 60 4500 1500
36 5.6 23 500 150 120 60 4500 1500
48 5.6 23 500 150 120 60 4500 1500
60 5.6 23 500 150 120 60 4500 1500
72 5.6 23 500 150 120 60 4500 1500
96 6.5 34 500 150 130 65 4500 1500
144 7.4 40 1000 300 150 75 4500 1500
192 8.0 50 1000 300 160 80 4500 1500
216 8.7 60 1000 300 180 90 4500 1500
288 10.3 79 1000 300 210 105 4500 1500
Operating temperature range -40 ~ +70℃
Storage temperature range -40 ~ +70℃
Installation temperature range -10 ~ +50℃

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

24 Core Optical Fiber Cable Multimode 9 / 125 Fast Underground Network Installation
