Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange
Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange
Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange
Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange
Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange
Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
LC/APC-DX-Shutter-NF
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
Plastic module, carton box, wooden pallet
Type :
LC/APC
Material :
Plastic
Chanel way :
duplex, 2 cores
Insertion loss :
0.2dB
Return loss :
55dB
Fiber mode :
Singlemode, Monomode
Description

LC/APC Automatic Shutter Cap Fiber Optic Adaptor Duplex Without Flange PBT Green​


Introduce:
- The LC adapters are use ceramic sleeve to connect connectors although they are different size and appearance.
- Each species has a lot of types and colors can be chose.
- Single mode and multi-mode are different performance and price.
- These adapters can locking the connectors and get low insertion loss to transmission optical signal.
- Our adapters are meet the Telcordia and IEC- 61754 stander, all material compliance RoHS require.

Quick Information:
- Name: LC/APC Duplex Shutter Adapter without flange
- Fiber type: Single mode (SM) 9/125
- Signal way: duplex (2 ways)
- Material: Plastic
- IL: less than 0.2dB
- RL: More than 50dB
- P/N: LC/APC-DX-Shutter-NF

Features:
- Excellent changeability and directivity
- 100% Optic test (Insertion Loss)
- Ceramic and phosphor bronze sleeve tube optional
- Accurate external size
- Individually packaged


Applications:
- Testing instruments
- Connection between devices
- Connection between fiber optic patch cords
- CATV, MANS, WANS
- FTTX, FTTH

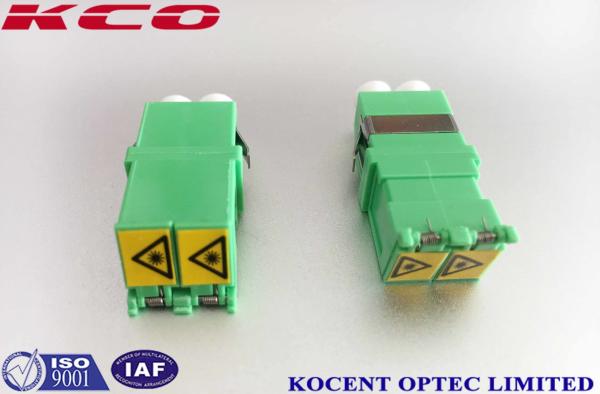

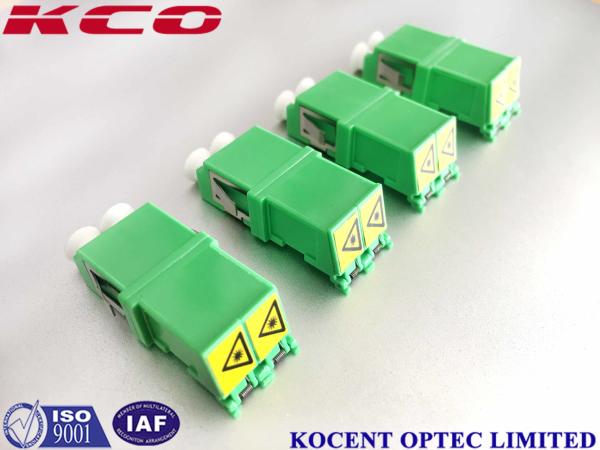

Product pictures:
Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange

Specification:

Characteristics Unit Single Mode Multimode
Insertion Loss (IL) dB <0.3
Exchangeability dB ∆IL<0.2
Repeatability (500 times) dB ∆IL<0.2
Sleeve material - Zirconia Phosphor bronze
Housing material - Nickel plated Copper
Operating Temperature °C -40 ~ +70
Storage Temperature °C -40 ~ +70


Reliability testing:

ItemTest NameAdditional Insertion LossAdditional Return Loss
1Mechanical durability<0.2dB<5dB
2Repeatability<0.2dB<5dB
3Lock strength<0.2dB<5dB
4Low strength<0.2dB<5dB
5High temperature<0.2dB<5dB
6Steaming<0.2dB<5dB
7Temperature cycle<0.2dB<5dB
8Vibration<0.2dB<5dB
9Drop<0.2dB<5dB


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea


Duplex Lc Fiber Optic Adapter Automatic Shutter Cap PBT Green Without Flange
