Specifications
Brand Name :
KCO
Model Number :
KCO-GYXTW-8.0
Certification :
ISO9001, RoHS, UL
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20000pcs/month
Delivery Time :
5-days
Packaging Details :
Carton box, wooden pallet
Material :
Metallic
A Port :
LC
B Port :
SC
Mode :
Single mode, multimode
IL :
0.2dB
RL :
55dB
Description

Strength Member Loose Tube GYXTW Outdoor Fiber Optic Cable PE Sheath 4~12core

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

Description:

- GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW fiber optic cable from 2 fiber cores to 12 fiber cores. Both single mode type and multimode types are available.

- The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

- The tubes are filled with a water-resistant filling compound.

- The tube is wrapped with a layer of corrugated steel tape longitudinally.

- Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight.

- Two parallel steel wires are placed at the two sides of the steel tape.

- The cable is completed with PE sheath.

Parameter:

Model Fiber Count Tube Fillers Cable Diameter
(OD)		 Cable Weight
(kg/km)		 Tensile Strength
Long/Short Term
(N)		 Crush Resistance
Long/Short Term
N/100m		 Bending Radius
Static/Dynamic
(mm)
GYXTW 2~12 1 12 6.5 70 600/3000 1000/3000 10D/20D
GYXTW 2~12 1 12 7 85 1000/3000 1000/3000 10D/20D
GYXTW 2~12 1 12 8 100 1000/3000 1000/3000 10D/20D

G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20ºC) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Features:

- The two parallel FRP strength members provides enough tensile strength.

- Special gel in the tube offers critical protection for the fibers.

- Small diameter and light weight.

- PE jacket itself prevents UV, and UV material can be added to perform much better.

- It's available under high and low temperatures anti-aging.

Application:

- Laying modes: Aerial & Conduit
- Rural communication, local trunk line, CATV & computer networks system

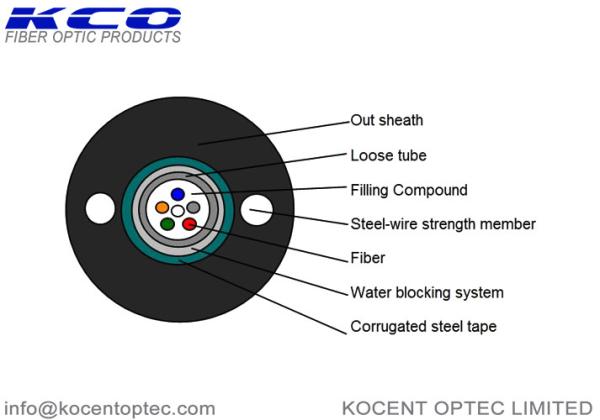

Construction:

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

LC Sc Fiber Cable Single Mode Multimode 4fo 8fo 12fo OS2 OM3 OM5 GYXTW

Q: What is your best price?

A: Based on the quantity of our products and the quantity of your order, we would quote the best matcing price all the time.

Q: Can you provide OEM and ODM serveice?

A: KCO with more than 10 years of experience in OEM service, we get many OEM order about fiber optic products. If you have request to make a your own design with your own LOGO of fiber optic product, please contact with our sales team to get best support.

Q: What is your MOQ?

A: Sample not quantity request, bulk order: at least 100pcs/ model.


Q: What is the lead time of my order?
A: Sample order: 3-5days, mass production order: 1-2weeks.


Q: Can I get a free sample?
A: New customer is not acceptable.


Q: How about the warranty?
A: 1 year for most products.

Q: How do you ship the goods to us?

A: - Sample / Small Order: DHL / TNT / UPS / Fedex / EMS / Aramex / SF Express, ...

- Mass Production Order: by air / by sea

- Standard Export Port: Ningbo / Shenzhen

Q: Can you list some of your main customers?

A: Dosmetical customers include: Huawei, ZTE, Fiberhome, China Telecom, China Mobile, ... Abroad customers include: TE, Commscope, Cisco, Cerizon, Smart, ...

Q: Why choose KCO to cooperate?

A: - Reliable and exprerienced communication equipment manufacturer for more than 10 years.

- First-class production line and strict quality management system.

- Professional procedure system and bulk production capacity to guarantee fast delivery time.

- Most competitive price to meet your budget.

- Professional RD team to design and innovate new products ased on our rich experience.

- Fast and Effective after sales service.
