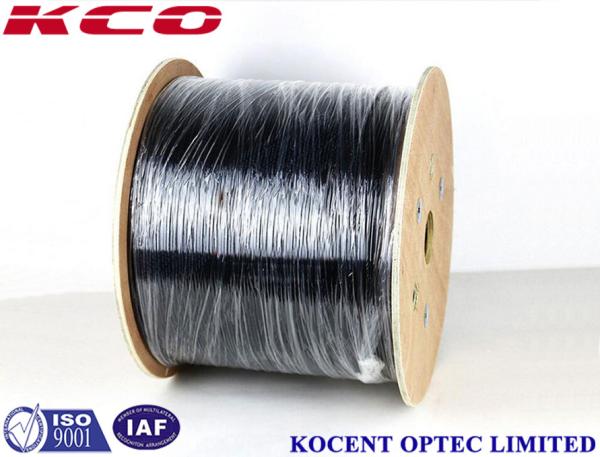

Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct
Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct
Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct
Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct
Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct
Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-GCYFY
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
PE
Name :
Outdoor Duct Cable
Length :
2km~3km each roll
Application :
outdoor or customized
Fiber :
single mode, multimode, OM3, OM4, OM5
Cores :
4 cores to 24 cores or more
Description

Air Blown Micro Duct Jetting Fiber Optic Cable PE Sheath Multimode OM1 OM2 OM3 OM4 OM5

Description:

- Optical fibers are housed in loose tubes that are made of high-modulus plastic and filled with waterproof compounds.

- FRP is applied as central strength member.

- Loose tubes are SZ-stranded around the strength member.

- Water blocking yarns are used in and over the cable core to prevent it from water ingress.

- Polyethylene sheath is applied over the cable core as the outer PE sheath.

Cable Description:

12/24/36/48//72/96/144 G.652D SM-fibers.

Loose tubes SZ-stranded.

Suitable for air blown cable in micro-duct installation.

Working Condition:

Transportation and storage temperature:-40℃~+70℃

Installation temperature: -15℃~+60℃

Operation temperature: -20℃~+70℃

Construction:

Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct

Parameters of optic fiber cable:

Category Description Specification
Geometrical Characteristics Cladding diameter 125.0 ± 1 mm
Cladding non-circularity £ 1.0 %
Core concentricity error £ 0.6mm
Coating diameter 245± 10 mm(Before Colored) 250 ± 15 mm (Colored)
Coating/cladding concentricity error £ 12mm
Optical Characteristics Mode field diameter at 1310 nm 9.2 ± 0.4 mm
Point discontinuity £ 0.05dB
Attenuation at 1310 nm £ 0.34 dB/km £ 0.35 dB/km
Attenuation at 1383 nm £ 0.34 dB/km £ 0.35 dB/km
Attenuation at 1550 nm £ 0.21 dB/km £ 0.22dB/km
Attenuation at 1625 nm £ 0.23 dB/km £ 0.24dB/km
Dispersion in 1288 – 1339 nm £ 3.5 ps/(nm·km)
Dispersion in 1271 – 1360 nm £ 5.3 ps/(nm·km)
Dispersion at 1550 nm £ 18 ps/(nm·km)
Zero dispersion wavelength 1300 – 1324 nm
Zero dispersion slope £ 0.092 ps/(nm2·km)
Cable cut-off wavelength £ 1260 nm
Polarization mode dispersion individual fiber £ 0.2 ps/Ökm
Polarization mode dispersion design link value (M=20, Q=0.01%) £ 0.1 ps/Ökm
Macro-bend loss (100 turns, 30mm radius, 1550/1625nm) £ 0.1 dB
Mechanical Specification Proof stress level ³100kpsi (0.69 GPa)
Coating strip force(peak value) 1.3~8.9N
Fiber curl (Radius) ³ 4 m

Cable Production Process:

Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

Single And Multimode Fiber Optic Cable PE Sheath High Modulus Plastic Micro Duct
