Mono Mode MPO MTP Fiber Optic Loopback Cable / Plug for Cable Testing

Informations:

- This MTP MPO Loopback is a custom manufactured.

- Male MTP MPO Multimode 50/125μm Loopback tester using a pin configuration of 1 to 2, 3 to 4, 5 to 6, 7 to 8, 9 to 10, and 11 to 12.

- MTP MPO provides the lowest available insertion loss for MTP/MPO connections.

- MTP MPO provides an advantage over standard MTP/MPO connectors by reducing the typical insertion loss by ~50%.

- Fiber optics installment requires careful and meticulous handling.

- Due to the fact that the integrity of the signal is sensitive to any type of manipulation, there are many tools to diagnose and calibrate any errors that may be affecting the fiber optics performance.

- Amongst these tools are the loopback testers.

- This simple yet effective tool is compact in size and thorough in its process of determining the continuity of the signal from one end to the other. - This specific loopback tester uses a MPO connector, which fastens the optic cables with a snap on mechanism.

Quick informtation:

- Compatible Connector: MPO Female

- Connector with pull release

- Fiber Type: SM 9/125, MM 50/125 OM3, MM 50/125 OM4

Typical Applications:

1. Testing fiber-optic connections in manufacturing environments;

2. Troubleshooting problems in a fiber-optic network;

3. Quality-control testing;
4. Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments.

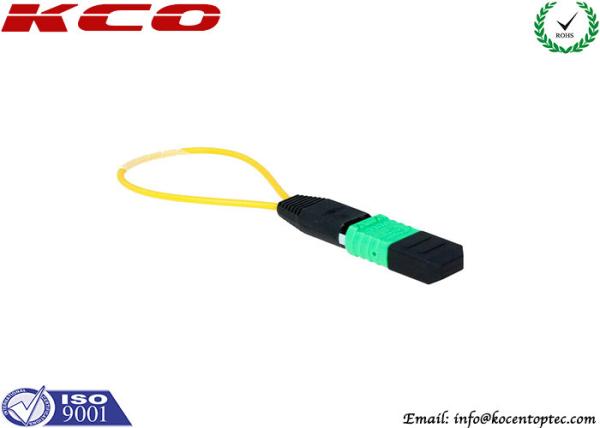

Product pictures:

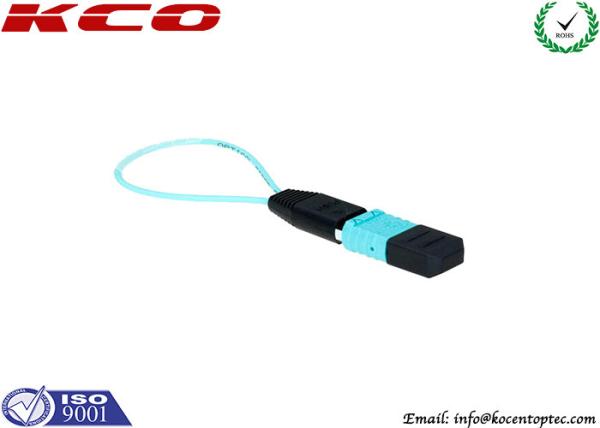

MTP/MPO Fiber-Optic Loopback Tester:

Perform optical link testing of your 40 GbE QSFP+ devices with MTP MPO Fiber-Optic Loopback Tester. The N844-LOOP-12F has an MTP female connector with a 12-pin configuration (1-12, 2-11, 3-10, 4-9, 5-8, 6-7). It features an OM3-rated 50/125μm fiber-optic loopback cable that's aqua in color, identifying it as a multimode cable. The tester connects the transceiver and receiver pairs, allowing testing to be performed on a complete link. With an overall length of approximately 4 inches, this kind of Loopback Tester is easy to take with you for testing anywhere in the network.

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
