8 12 24 MPO Optical Connector / MPO Fiber Optic Connector Single Mode Types

Descriptions:

- MPO fiber optic connector is one of the typical type of fiber connectors that mainly installed under factory conditions using specialized processes.

- It is available in Single mode APC and Multimode OM1 OM2 OM3 OM4 and OM5.

- Ferrule have two type: Male and female.

- It is built on the MT-style ferrule, designed by NTT.

- The MT (mechanical transfer) ferrule is designed to hold up to 12 fibers in a ferrule 7mm wide and is ideally suitable for ribbon fiber connections.

- In addition, precision-machined guide pins maintain the close alignment necessary for connecting 12 fibers at once.

- These guide pins can be arranged as necessary between the mating connectors depending on the way they will be used.

- Connectors designed for multiple fibers are also known as array connectors.

- The MPO connectors has a plastic body that is spring-loaded to keep the connectors together.

- MPO connector realizes high density interconnection by MT ferrule with fiber ribbon.

- Kocent Optec Limited accept OEM service for all type of MPO/ MTP truck hardess patch cable and fanout and break out patch cable.

Features:

- Precision molded MT ferrule

- High precision guide pins for exact alignment

- Compact design, up to 24 fiber ribbons

- Meet IEC 61754-7 Compliant

- High density interconnection

- Materials meet RoHS requirements

Applications:

- Parallel optical interconnect between PC cards and patch panels

- Interconnection for OE modules

- Optical Switch inter-frame connections

- Gigabit Ethernet

- CATV

- Video

- Active Device / Transceiver Interface

- Premise Installations

- Telecommunication Networks

- Multimedia

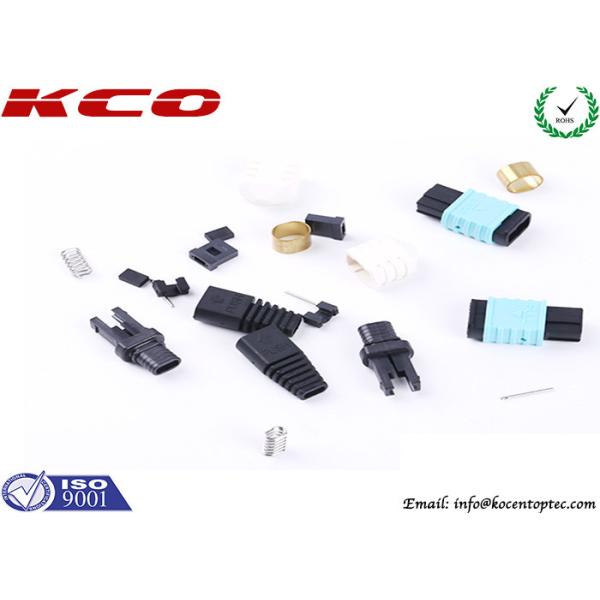

Product picutures:

MPO fiber optic connector Specifications:

Notes:

* 24F SM standard loss IL typical ≦0.5dB, maximum ≦1dB

* Not available in low loss 24F SM & MM

* Performance is polish dependent
