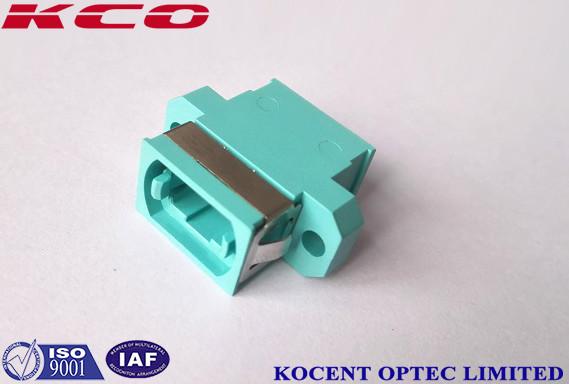

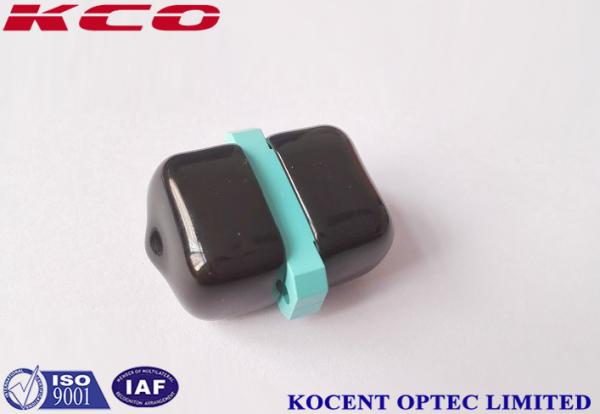

FTTA FTTH MPO Fiber Optic Adapters Aqua Color Low Insertion Loss With Flange OM3 OM4
FTTA FTTH MPO Fiber Optic Adapters Aqua Color Low Insertion Loss With Flange OM3 OM4
FTTA FTTH MPO Fiber Optic Adapters Aqua Color Low Insertion Loss With Flange OM3 OM4
FTTA FTTH MPO Fiber Optic Adapters Aqua Color Low Insertion Loss With Flange OM3 OM4
FTTA FTTH MPO Fiber Optic Adapters Aqua Color Low Insertion Loss With Flange OM3 OM4
FTTA FTTH MPO Fiber Optic Adapters Aqua Color Low Insertion Loss With Flange OM3 OM4
Specifications
Brand Name :
kCO, Kocent Optec Limited
Model Number :
MPO-adt
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500,000pcs/month
Delivery Time :
3~5 working days
Packaging Details :
Carton box, wooden pallet
Material :
Plastic
Durability :
0.3dB
IL :
0.3dB
Wave length :
1260~1650nm
Type :
MPO-MPO
Operating Temperature :
-40~+70 degree
Description

MPO MTP OM4 Adapter Fiber Optical Adaptor FTTA FTTH Aqua Color Plastic With Flange

Descriptions:

* The MTP/MPO adapter has two types as key-up to key-down and key-up to key-up.

* The MPO Fiber Optic Adapteris to provide MPO Patchcord to MPO patchcord Fiber connecting.
* MPO Optical Adapters are flange type adaptors with plastic housing, both single mode and multimode ones available.
* MPO Adapters are used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems.
* They offer up to 12 times the density of standard connectors.
* The MPO adapters provide significant space and cost savings.
* This adapter meets appropriate standards and is perfect for your paralell optics and MTP adapter needs.

* It provides the connection between cable to cable or cable to equipment in the MTP/MPO style.
* It works for any MTP Connector from 4 fiber to 72 fiber, widely used in trunk cabling and casettes.

* Compact size and precision design
* High-density optical fiber docking
* Low insertion loss & good exchangebility

Product advantage:
* MTP MPO Singlemode Multifiber Adapte

* Apply for CATV, LAN, Telecom network, test equipment

* Multi Mode or Single Mode, Simplex or Duplex optional
* PC / APC available
* Square, round, single / coupled, quad 2 cores or 4 cores shape optional
* Ceramic sleeve, copper, zinc alloy and plastic housing
* IL≤0.2dB, RL≥50dB (pc); RL≥60dB (apc)
* Operating temp.: -40°C~+85°C
* Standard plugging force: 2~6N
* Durability > 1000 times
Size:
FTTA FTTH MPO Fiber Optic Adapters Aqua Color Low Insertion Loss With Flange OM3 OM4

Features:

* Meet IEC 61754-7 and TIA/EIA 604-5 standards for MPO/MTP interfaces

* Internal shutter is available

* Keyway available for key-up to key-up or key up to key down
* Low insertion loss, high return loss
* High precision of mechanical dimensions
* High reliability & stability
* Ceramic or Bronze Sleeve
* PC, APC, UPC optional
* Simplex / Duplex
* Hybrid adapter Optional


Specification:

ProductMTP MPO Singlemode Multimode Multifiber Adapter
TypeFC SC LC ST MPO MU MTRJ
Fibersm om1 om2 om3 om4
CoresSimplex Duplex Quad
ColorBlue Grey Aqua
With FlangeYes
Inertion Loss<0.3db
Return Loss>55db
PackageBlister or PE bags
Durability≤0.2dB (1000 times)


Environment and Mechanical

PropertiesTest conditionConformanceTest result
Vibration10-55Hz, 1.5mm, 60minIEC61300-2-1≤0.2dB
Mating Durability1000 Mating, clean every 25 mating.IEC61300-2-2≤0.2dB
Impact1.5m, 8 dropsIEC61300-2-6≤0.2dB
Strength of Coupling Mechanism40N, 10Min, L=22-28cmIEC61300-2-12≤0.2dB
Temperature Cycling40ºC to +75ºC, 40 cyclesIEC61300-2-22≤0.2dB
Temperature humidity cycling40ºC, 95%,96HrIEC61300-2-21≤0.2dB
Operating Temperature-40ºC to +85ºC ≤0.2dB
Storage Temperature-40ºC to +85ºC ≤0.2dB


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

FTTA FTTH MPO Fiber Optic Adapters Aqua Color Low Insertion Loss With Flange OM3 OM4
