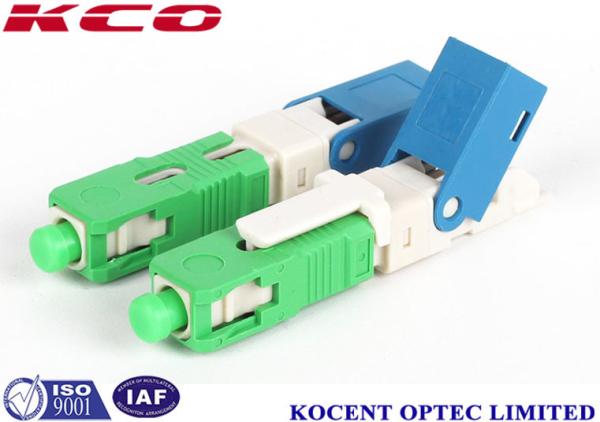

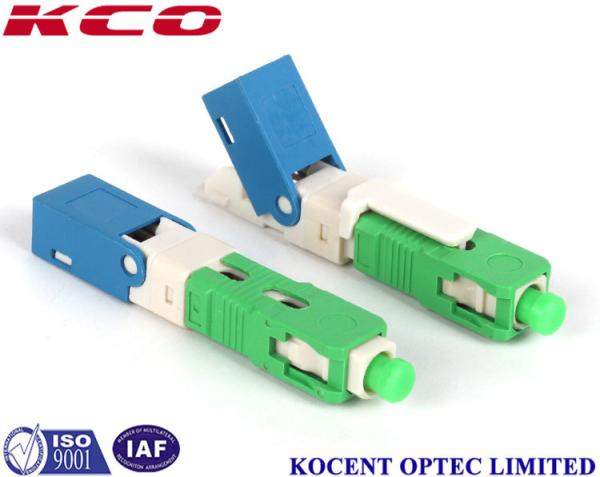

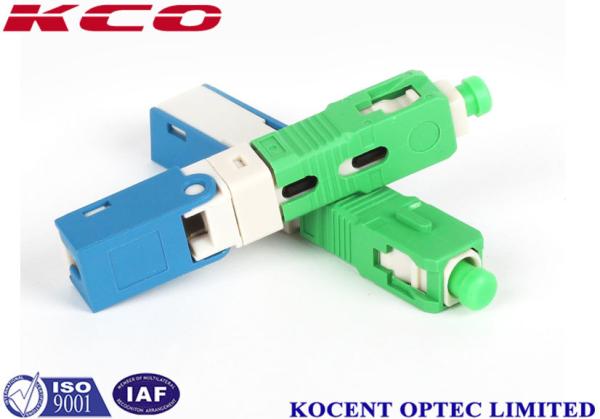

Single Mode Fiber Optic Fast Connector , Sc Optical Connector Field Installable
Single Mode Fiber Optic Fast Connector , Sc Optical Connector Field Installable
Single Mode Fiber Optic Fast Connector , Sc Optical Connector Field Installable
Single Mode Fiber Optic Fast Connector , Sc Optical Connector Field Installable
Single Mode Fiber Optic Fast Connector , Sc Optical Connector Field Installable
Single Mode Fiber Optic Fast Connector , Sc Optical Connector Field Installable
Specifications
Brand Name :
KCO
Model Number :
FAST-55/60-SC-APC
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden pallet
Type :
FAST SC
Color :
Green
Insertion loss :
0.2dB
Return loss :
55dB
Mode :
single mode, multi mode
Length :
55mm 60mm
Description

Green 2.0mm 3.0mm FTTX SC /APC Quick Connector, Field Assembly Connector

Overview:

Field Assembly SC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.

This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.

1. Twin end-face of pre embedded fiber is polished in the factory..

2. Fiber optics is aligned in V-groove through the ceramic ferrule.

3. Side cover design provide complete preservation of the matching liquid.

4. Ceramic ferrule with pre-embedded fiber is polished to APC.

5. Length of the FTTH cable is controllable

6. Simple tooling, easy operation, portable style and reusable design.

Features:

1. Quick and easy fiber termination in the field

2. No special assembling tool
3. No epoxy or polishing required

4. Minimize the defect rate by features of removal and reusable.

5. Eliminates cable excess length and pigtail splice storage

Application:

1. CATV

2. Telecommunication networks

3. Other industry and military

4. Local Area Networks(LANs)

5. Data processing networks

6. Industrial, Medical & Military

Specification:

Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.25dB(1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >10 N
Temperature -40~+85°C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

Product Pitures:

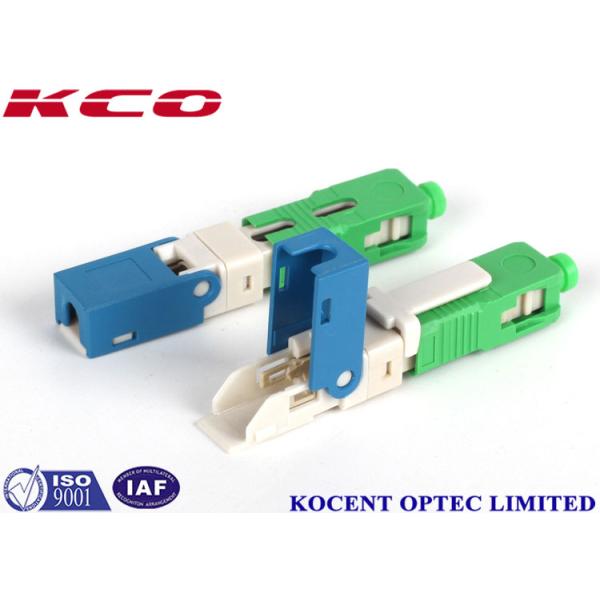

Single Mode Fiber Optic Fast Connector , Sc Optical Connector Field Installable

Single Mode Fiber Optic Fast Connector , Sc Optical Connector Field Installable

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
