Specifications
Brand Name :
KCO
Model Number :
FAST-FC-UPC-55
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
plastic module, PE bag, Carton box, wooden pallet
Connector type :
FC/UPC
Cable available :
3mm/2mm cable
Color :
Black
Insertion loss :
0.2dB
Return loss :
50dB
Wave length :
1260~1650nm
Description

Multimode 55mm FC/UPC Fiber Optic Fast Connector, Field assembly Connector, 2.0mm, 3.0mm

About fiber optic fast connectors:

Field Assembly SC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.

This kind of FC/UPC fiber optic fast connector is special design for 2.0mm/3.0mm indoor fiber optic cable.

Fast connectors features:

1. No special assembling tool

2. Quick and easy for assembling

3. Reusable and repeat operation times are up to 300

4. Integrated protection of the casing to prevent the connector form impact

5. Quick and easy fiber termination in the field

6. Power-save, as it does not need hot melting

7. Cost effective

Application:

1. CATV
2. Telecommunication Networks
3. Local Area Networks(LAN)
4. Data Processing Networks
5. Wide Area Networks(WAN)
6. Industrial, Medical & Military

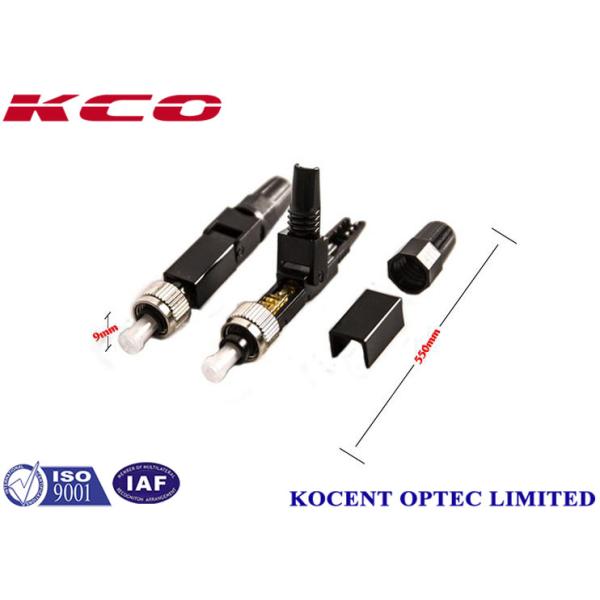

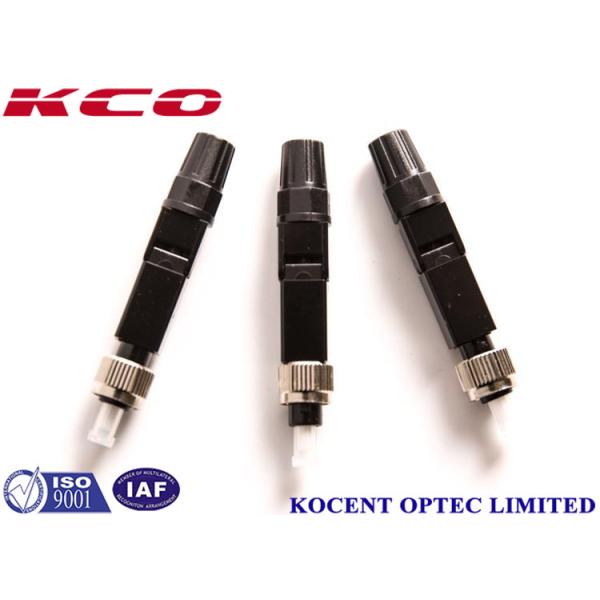

Product Pictures:

Multimode Fc Optical Connector Connect Equipment Fiber Patch Panels

Multimode Fc Optical Connector Connect Equipment Fiber Patch Panels

Fast connectors Specifications:

Applicable for Drop cable. Indoor cable(0.9/2.0/3.0mm)
Optical fiber diameter 125μm
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB
Return loss ≥50dB
Fastening strength of naked fiber >5N
Fastening strength of naked fiber holder >10N
Tensile strength >50N
Using temperature -40°C~+75°C
On-line tensile strength (20N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.5dB RL ≤ 5dB

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
