SC UPC Fiber Optic Fast Connector , Field Installable Connector 55mm 60mm
SC UPC Fiber Optic Fast Connector , Field Installable Connector 55mm 60mm
SC UPC Fiber Optic Fast Connector , Field Installable Connector 55mm 60mm
SC UPC Fiber Optic Fast Connector , Field Installable Connector 55mm 60mm
SC UPC Fiber Optic Fast Connector , Field Installable Connector 55mm 60mm
SC UPC Fiber Optic Fast Connector , Field Installable Connector 55mm 60mm
Specifications
Brand Name :
KCO
Model Number :
FAST-55/60-SC-UPC
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden pallet
Type :
FAST SC
Color :
Blue
Insertion loss :
0.2dB
Return loss :
55dB
Mode :
single mode, multi mode, mono mode
Length :
55mm, 60mm
Description

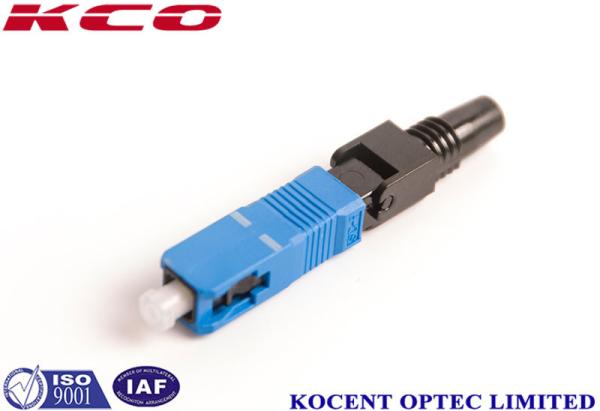

Field Assembly Connector 55mm/60mm SC/UPC Fiber Optical Fast Connector

Overview:

Field Assembly SC quick connector can provide a quick and easy of fiber in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesive or costly curing ovens and polishing and fiber deface inspection.

Features:

1. Factory-installed fiber stub

2. No epoxy or polishing required

3. Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splice storage

4. Eliminates cable excess length and pigtail splice storage

5. Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable, telecom cable

Application:

1. CATV

2. Telecommunication networks

3. Test equipment

4. Local Area Networks(LANs)

5. Data processing networks

6. Testing instruments

Specification:

Fast Connector Specification
Mode SM MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

 ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

Product Pictures:

SC UPC Fiber Optic Fast Connector , Field Installable Connector 55mm 60mm

SC UPC Fiber Optic Fast Connector , Field Installable Connector 55mm 60mm

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
