E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly
E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly
E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly
E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly
E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly
E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly
Specifications
Brand Name :
KCO
Model Number :
FAST-50-SC-UPC
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100,000pcs/month
Delivery Time :
2~5 days after get payment
Packaging Details :
PE bag, carton box, wooden pallet
Type :
FAST SC
Color :
Blue, Black
Insertion loss :
0.2dB
Return loss :
55dB
Mode :
single mode, multi mode
Length :
50mm
Description

FTTH Solution Product SC /UPC Fast Connector, Field Assembly Connector, 50mm

Overview:

Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks, to assemble with drop cable quickly.

1. Twin end-face of pre embedded fiber is polished in the factory..

2. Fiber optics is aligned in V-groove through the ceramic ferrule.

3. Side cover design provide complete preservation of the matching liquid.

4. Ceramic ferrule with pre-embedded fiber is polished to APC.

5. Length of the FTTH cable is controllable

6. Simple tooling, easy operation, portable style and reusable design.

7. Connector size: 49.5*7*6mm or produced as per client's request.

Features:

1. No special assembling tool
2. Easy for assembling with mechanical splice and no polishing
3. Easy for learning technology by a simple assembling method (within 1 and half minutes)
4. Minimize the defect rate by features of removal and reusable.

5. Factory-installed fiber stub

Application:

1. CATV

2. Telecommunication networks

3. Test equipment

4. Local Area Networks(LANs)

5. Data processing networks

6. Connection between fiber optic patch cords

Specification:

Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.25dB(1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >10 N
Temperature -40~+85°C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction, three times total) IL ≤ 0.3dB

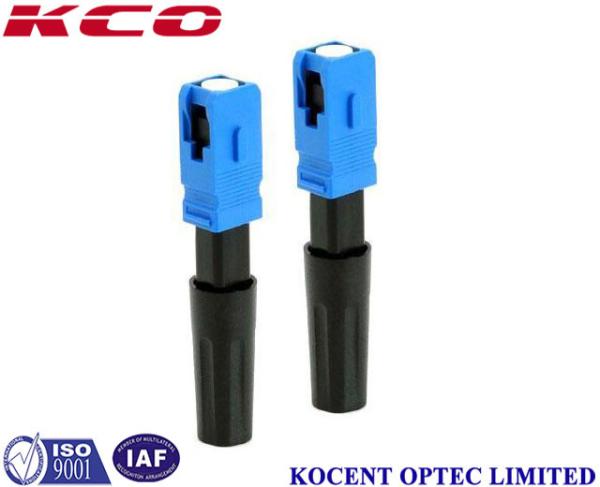

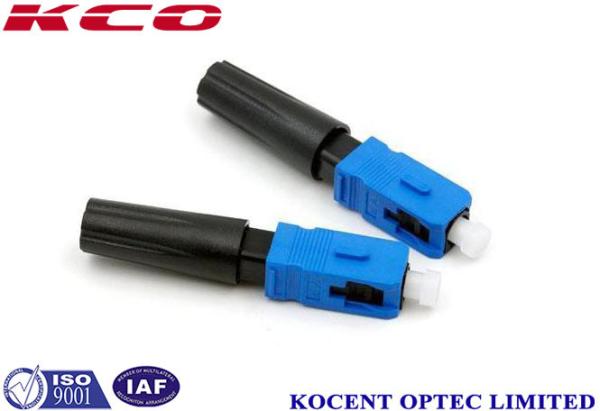

Porduct Pictures:

E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly

E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly

E2000 Multimode Fiber Optic Fast Connector , Sc Fiber Coupler Assembly

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
