LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic
LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic
LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic
LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic
LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic
LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic
LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic
LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic
Specifications
Brand Name :
KCO
Model Number :
LC-SC-Adapter
Certification :
ISO9001, RoHS, UL
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
20000pcs/month
Delivery Time :
5-days
Packaging Details :
Carton box, wooden pallet
Material :
Metallic
A Port :
LC
B Port :
SC
Mode :
Single mode, multimode
IL :
0.2dB
RL :
55dB
Description

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

Descriptions:

- Fiber optic adapters also call fiber optical adapter, optic fiber adapter, optical fiber adapter.

- The fiber optic adapters use to join two fiber optic patch cables together. It contains the interconnect sleeve, that holds the two ferrules together.

- Fiber optic adapter is available in single mode UPC APC and multimode PC to sastify to connect single mode or multimode patch cable.

- A hybrid adapte's function is same with common fiber optic adapter. It is the fiber optic adapter that use to convert one type of adapter connector into onther typr of adapter connector such as from SC adapter connector convert into ST adapter connector. And so on, we can do SC to LC, SC to FC, FC to ST, FC to LC or LC to ST, etc. When you want to connect two type different of fiber optic patch cable, you will need to use this hybrid fiber optic adapter.

SC/UPC-LC/UPC hybrid adapter also call SC-LC hybrid optical fiber adapter. It use to connect the SC/UPC fiber optic patch cable and LC/UPC fiber optic adapter. With hight quality of ceramic sleeve, it can keep 0.2dB if insertion loss in 1000 times of mating. We do testing each of fiber optic adapter before delivery to warranty that it is standard goods when they come to customer's hand.

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

Applications:

- Testing instruments

- Connection between devices

- Connection between fiber optic patch cords

- CATV, MANS, WANS

- Fiber to the home, FTTX

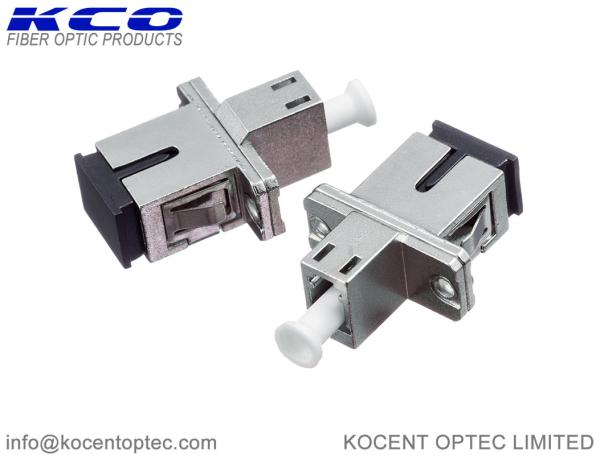

Product photo:

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

Specification of fiber optic adapters:

Parameter Specifications
Mating Connector Type SC, LC, FC, ST, MU, D4, DIN, E2000, SMA, etc
Fiber Type of Connector Single Mode Multimode
Adapter Color Blue, green, metallic Beige, Metallic
Testing Wavelength 1310nm,1550nm 850nm,1300nm
Insert Loss Typical≤0.15dB, max≤0.2dB Typical≤0.15dB, max≤0.2dB
Repeatability ≤0.10dB
Exchangeability ≤0.20dB
Durability 1000Mating, max≤0.20dB
Housing Material Plastic or metal
Operating Temperature -20°C～+70°C
Storage Temperature -40°C～+85°C
Alignment Sleeve Ceramic (ZrO2) or customized
Channel Number Simplex, duplex, quad .

Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

LC-SC Female Fiber Optic Hybrid Adapter Single Mode Simplex Metallic

Q: What is your best price?

A: Based on the quantity of our products and the quantity of your order, we would quote the best matcing price all the time.

Q: Can you provide OEM and ODM serveice?

A: KCO with more than 10 years of experience in OEM service, we get many OEM order about fiber optic products. If you have request to make a your own design with your own LOGO of fiber optic product, please contact with our sales team to get best support.

Q: What is your MOQ?

A: Sample not quantity request, bulk order: at least 100pcs/ model.


Q: What is the lead time of my order?
A: Sample order: 3-5days, mass production order: 1-2weeks.


Q: Can I get a free sample?
A: New customer is not acceptable.


Q: How about the warranty?
A: 1 year for most products.

Q: How do you ship the goods to us?

A: - Sample / Small Order: DHL / TNT / UPS / Fedex / EMS / Aramex / SF Express, ...

- Mass Production Order: by air / by sea

- Standard Export Port: Ningbo / Shenzhen

Q: Can you list some of your main customers?

A: Dosmetical customers include: Huawei, ZTE, Fiberhome, China Telecom, China Mobile, ... Abroad customers include: TE, Commscope, Cisco, Cerizon, Smart, ...

Q: Why choose KCO to cooperate?

A: - Reliable and exprerienced communication equipment manufacturer for more than 10 years.

- First-class production line and strict quality management system.

- Professional procedure system and bulk production capacity to guarantee fast delivery time.

- Most competitive price to meet your budget.

- Professional RD team to design and innovate new products ased on our rich experience.

- Fast and Effective after sales service.
