Outdoor Armoured GYXTW Fiber Optic Cable 2-24 Core Single Mode LSHZ PVC Material
Outdoor Armoured GYXTW Fiber Optic Cable 2-24 Core Single Mode LSHZ PVC Material
Outdoor Armoured GYXTW Fiber Optic Cable 2-24 Core Single Mode LSHZ PVC Material
Outdoor Armoured GYXTW Fiber Optic Cable 2-24 Core Single Mode LSHZ PVC Material
Outdoor Armoured GYXTW Fiber Optic Cable 2-24 Core Single Mode LSHZ PVC Material
Outdoor Armoured GYXTW Fiber Optic Cable 2-24 Core Single Mode LSHZ PVC Material
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-GYXTC8S
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
LSHZ, PVC
Name :
GYXTC8S cable
Length :
2km~3km each roll
Application :
outdoor or customized
Fiber :
single mode, multimode, OM3, OM4, OM5
Model :
GYXTC8S
Description

2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured GYXTW Fiber Optic Cable

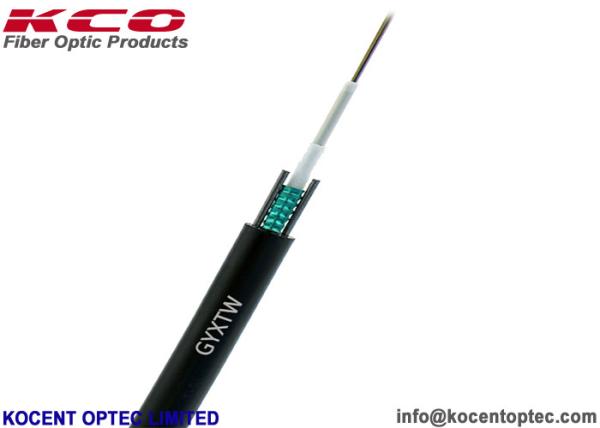

Description

- The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.

- Two parallel steel wires are placed at the two sides of the steel tape.

- The 250μm fiber is positioned in a loose tube made of a high modulus plastic.

- The tubes are filled with a water-resistant filling compound.

- The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.

Application

Usable in Duct / Aerial

Features

- High strength loose tube that is hydrolysis resistant

- Special tube filling compound ensure a critical protection of fiber

- Crush resistance and flexibility

- Good mechanical and temperature performance

- PSP enhancing moisture-proof

- Two parallel steel wires ensure tensile strength

- Small diameter, light weight and friendly installation

- Storage / Operating Temperature: -40℃~+70℃

Fiber Parameter

No. Items Unit Specification
G.652D
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.36
1550nm dB/km ≤0.24

Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250µm±15µm
Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Dimension 2.10mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black

Mechanical and Environmental Characteristics

Items Unite Specifications
Tensio (Long Term) N 600
Tension (Short Term) N 1500
Crush (Long Term) N/10cm 300
Crush (Short Term) N/10cm 1000
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70

Technical Parameter

Fiber Count Cable Diameter (mm) Cable Weight (kg/km)

Tensile Strength

Long/Short

Term (N)

Crush Resistance

Long/Short

Term (N/100mm)

Bending

Radius Static/Dynamic

(mm)
2~12 6.0 65 1000/3000 1000/3000 10D/20D
14~24 8.0 68 1000/3000 1000/3000 10D/20D

Transmission Characteristics
G.652 G.655 50/125μm 62.5/125μm

Max Attenuation

(dB/km) (+20℃)

 850 nm 3.0 3.3
1300 nm 1.0 1.0
1310 nm 0.36 0.4
1550 nm 0.24 0.23
Cable Cute-off Wavelength (nm) ≤1260 ≤1450

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

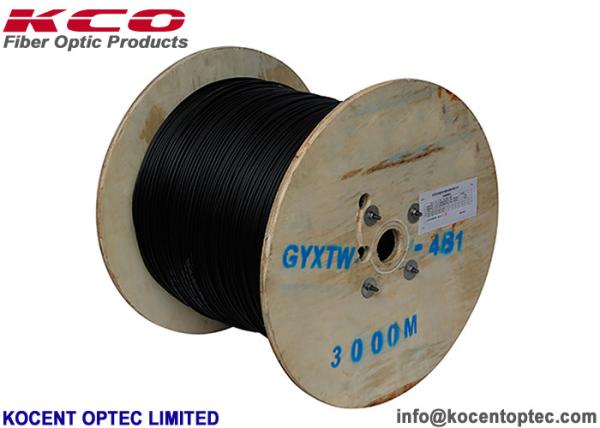

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
