Horizontal Fibre Optic Splice Closure Joint Box 4 Ports 12 24 48 72 96Fibers Waterproof IP67
Horizontal Fibre Optic Splice Closure Joint Box 4 Ports 12 24 48 72 96Fibers Waterproof IP67
Horizontal Fibre Optic Splice Closure Joint Box 4 Ports 12 24 48 72 96Fibers Waterproof IP67
Horizontal Fibre Optic Splice Closure Joint Box 4 Ports 12 24 48 72 96Fibers Waterproof IP67
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-H0920
Certification :
iSO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
5,000pcs/week
Delivery Time :
5~14 working days
Packaging Details :
Carton box, wooden pallet
Type :
Inline type
Cable ports :
4 ports
Cable diameter :
8.0~22.0mm
Min. capacity :
12 cores
Max capacity :
96 cores
Material :
PPR, ABS, PC, PP
Description

Horizontal Optical Fibra Splice Closure Joint Box 4 Ports 24 Fibers Waterproof Anti UV

Description:

- KCO-H0920 is one of classic type of inline splice closure.

- It can be used in aerial, duct, and direct buried application;

- It is made by high quality ABS or ABS+PC plastic.

- Life time: is about 25 years

- This splice closure provides suitable for cable whose diameter is 10-23mm.

- These products are made of the high quality material and with the mechanical sealing structure filled with the sealing material.

- The external components and fastening parts are all made of stainless steel, it can be reopened and reused without changing sealing material.

- The ambient temperature ranges from -40 to 65℃.

Main Features

- Easy and fast to increase and reduce splice tray
- Innovative elastic integrated seal fitting

- Advanced internal structure design, thus fiber suffering no attenuation
- The closure is spacious enough for winding and storing fibers
- Flip style fiber splice trays are designed
- The curved radius meets with international standard
- Adopting PC material for plastic parts and excellent steel for the external fasteners and structural parts.
- With the function of reuse and capacity expansion for many times
- With the function of electric connection and disconnection for electrical for the fiber optic cables.

Quick detail:

- Name: Inline/ Horizontal Type Fiber Optic Enclosure Box

- Part number: KCO-H0290

- Cable entry port: 2 inports and 2 outports, 4 ports

- Capacity of fibers: 96cores

- Splice tray number: max. 4 trays

- Splice tray capaciry: 24 cpres

- Material: ABS/ PC

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃

- Packing: 10pcs/ carton box

Product Specification:

Product Name Fiber optic splice closure
Color black
Cores 96 cores
Seals Mechanical seal
Material ABS, PC
Cable out of the tube configuration Up to four out of the tube fiber optic cable
Ports diameter(mm) 16~22mm
Fiber radius of curvature(mm) 30
Dielectric strength(kv) 1.5
Ambient temperature(°C) -40~+60
Atmospheric pressure(Kpa) 70~1106
Tensile strength(N) >1000
Anti-stress >2000N/ 10cm2 Stress,Time 1min
Scope Pole, buried, manholes

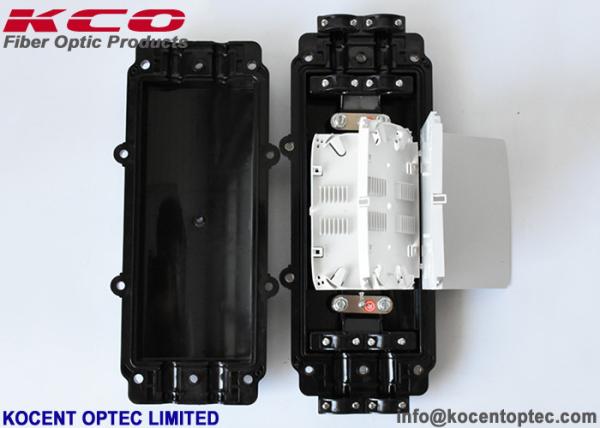

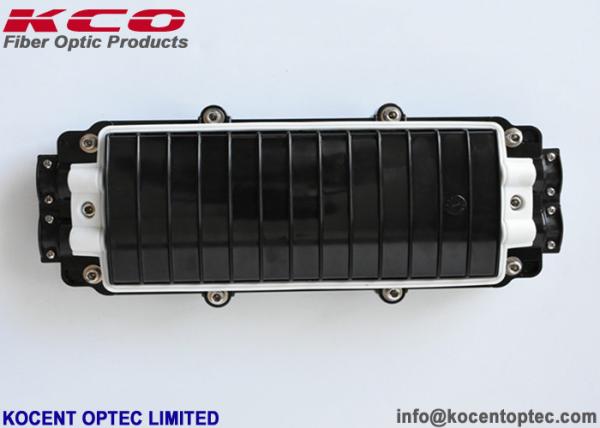

Product pictures:

Horizontal Fibre Optic Splice Closure Joint Box 4 Ports 12 24 48 72 96Fibers Waterproof IP67

Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user

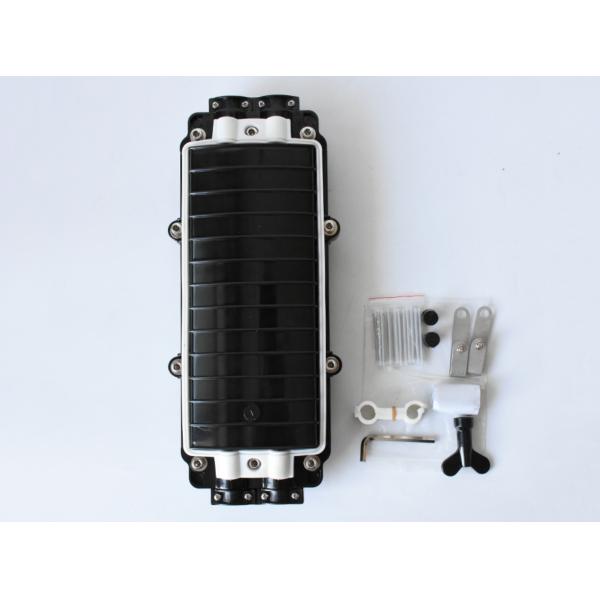

Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube Protecting fiber splices Configuration as per capacity
2 Nylon tie Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.

Horizontal Fibre Optic Splice Closure Joint Box 4 Ports 12 24 48 72 96Fibers Waterproof IP67

OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Horizontal Fibre Optic Splice Closure Joint Box 4 Ports 12 24 48 72 96Fibers Waterproof IP67


Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

Horizontal Fibre Optic Splice Closure Joint Box 4 Ports 12 24 48 72 96Fibers Waterproof IP67
