ESC250D Optical Fiber Fast Connector Field Quick Assembly Connector Telecom 3D Pass

Manufacturer:

- Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
- All of our fast connector meet Telecom requirement as Viettel, VNPT, ...

- The goods are 100% tested before shipment.

- IL: <0.3dB, 3D pass: >80%
- OEM service:

Logo print is free for quantity more than 10k (pcs).

Logo Lettering is free for quantity more than 100k (pcs)

- ODM service:

Contact with our sales team for your OEM and ODM order.

Feature:
- Factory-installed fiber stub.
- No epoxy and polishing required, No special tools needed when installed.
- Allows up to three re-termination result.
- Easily installed,

- Quick and easy fiber termination in the field.
- Only 30 seconds needed to learn the process of installation and making.
- Cost effective, Warranty: One year.
- Fast connecting and repeat, No special tools needed when installed.
- Can be made on-site without splicing connectors.
- Eliminates cable excess length and pigtail splice storage.
- Can be intalled and maked repeatedly thus avoiding loss.

Techenical Data:
- P/N: ESC250D UPC
- Size: 52×9×8.1mm
- Optical fiber: 0.9mm cable
- Plug type: SC/APC, SC/UPC
- Diameter of fiber: 0.125mm
- Fiber Mode: single mode
- IL: less 0.3dB (0.2dB type)
- 3D: pass 80%
- Use for: 2.0mm×3.0mm & 2.0mm×1.6mm FTTH drop cable

Descriptions:
- Double V-groove structure design, fiber optic docking is stable and reliable;
- The core structure: the use of normally closed elastic fastening method, excellent technical indicators;
- Linkage structure design, when docking with equipment and joints, the reserved microbend remains unchanged;
- Applicable optical cable: 2.0mm×3.0mm & 2.0mm×1.6mm butterfly cable;
- Tensile strength: > 30N / 2min;
- Simple operation, fast construction speed, high installation success rate, long life cycle and simple and convenient maintenance.
- Product size: 52 × 9 × 8.1mm

Application:
- Patch panels
- Distribution frames
- Maintenance or emergency restoration of fiber networks
- ​FTTH Outlets
- Connection at the desk for LAN environments
- Suitable for FTTx butterfly type cable(both square and circle shape are available)

Specification

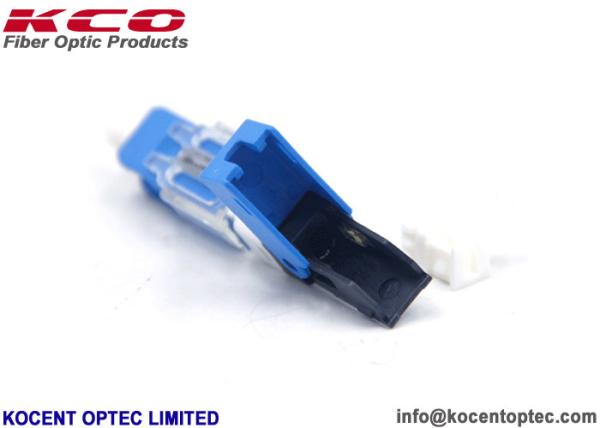

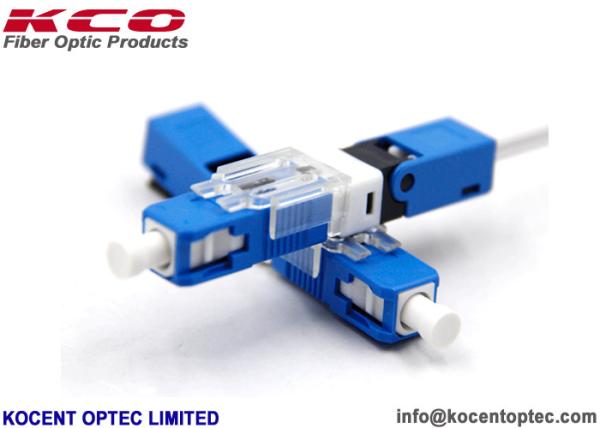

Product photo:


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
