Introduction:
- The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.
- It also widely used for high bit rate data transmission, telecommunications, tesing instruments, active device terminations, LAN/WAN and FTTX.
- Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss.
- They come with your choice of simplex or duplex cable configuration.
- Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC ,FC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
- Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Fullaxs Connector, Military Connector, PDLC, ODVA, ...
- With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.

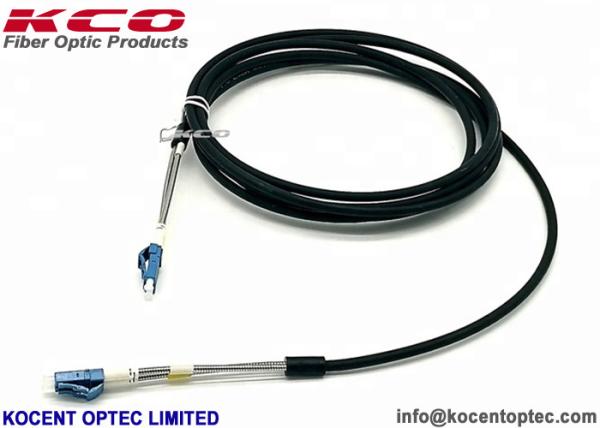

- FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector is designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.
- With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.,
Application: A CPRI/ FTTA/ Base Station patch cord is used as: 3G 4G base station, Aerospace& Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX, WIMAX, BBU, RRU, RRH, LTE.
- Product is available in 2 core, 4-core, 6-core, 8-core, 12-core.

Characteristics:
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability.
- Precise connector
- Excellent mechanical capability

Parameter:
Connector type: LC/UPC, SC/UPC, FC/UPC, ST/UPC. LC/APC, SC/APC, FC/APC, ST/APC
Insertion Loss: <=0.2db <=0.3db
Return Loss: >=50db >=60db
Fiber mode: Single-mode/ Multi-mode, G.652.D
Operating wavelength: 1310, 1550nm
Test wavelength: 1310,1550nm
Repeatability: <=0.1
Interchangeability: <=0.2dB
Durability: <=0.2dB
Fiber Length: 1m, 2m….. any length optional.
Length and tolerance: 10cm
Operating Temperature: -40C ~ +85C
Storage Temperature: -40C ~ +85C

Cable constructions:
Type 1: SUS Spiral Steel Amoured +LSZH+Kevlar+ 2×Buffered 0.9mm fiber (4.8mm);
Type 2: SUS Spiral Steel Amoured + LSZH+Kevlar+ 2×2.0mm cable (7.0mm)
Other cable construction welcome to customerize.

Features:
- The connectors are comply with IEC, Telcordia-GR-326-Core standards;
- Different size & color boot option;
- Low insertion loss; High return loss;
- 100% interferometer measurement;

Application:
- Telecommunication networks;
- Local area networks;
- CATV;
- Active device termination;
- Data center system networks;
- PON;
- Military exercise;
- Performance and so on.
