Introduction:

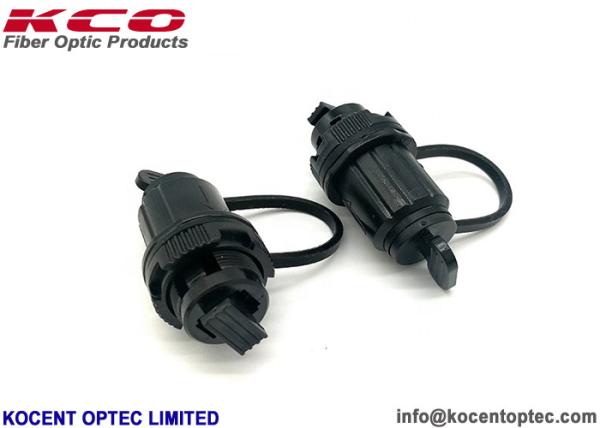

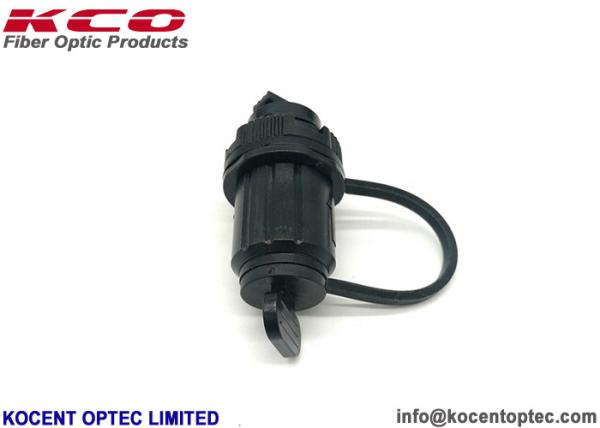

- Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
- The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
- The SC/APC and SC/UPC connectors mate to a standard adapter providing a common interface for FTTX applications.

- Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Mini SC waterproof Connector, Fullaxs Connector, Military Connector, PDLC, ODVA, ...

- With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment.

- We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.

Parameter:
- Connector type: LC/UPC, SC/UPC, FC/UPC, ST/UPC. LC/APC, SC/APC, FC/APC, ST/APC
- Insertion Loss:

<=0.2db

<=0.3db
- Return Loss:

>=50db

>=60db
- Fiber type:

Single-mode: G652D, G655, G657A1, G657A2, G657B3

Multi-mode: OM1, OM2, OM3, OM4, OM5
- Operating wavelength: 1310, 1550nm, 850nm, 1490um
- Test wavelength: 1310,1550nm
- Repeatability: <=0.1dN
- Interchangeability: <=0.2dB
- Durability: <=0.2dB
- Length and tolerance: 10cm
- Operating Temperature: -40C ~ +85C
- Storage Temperature: -40C ~ +85C

Features:

- The connectors are comply with IEC, Telcordia-GR-326-Core standards;

- Different size & color boot option;

- Low insertion loss; High return loss;

- 100% interferometer measurement;

Application:

- Telecommunication networks;

- Local area networks;

- CATV;

- Active device termination;

- Data center system networks;

- PON;

- Military exercise;

- Performance and so on.
