Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-FOFP-SCUS-CATV
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
20,000 pcs/ month
Delivery Time :
7~14 days after get payment
Packaging Details :
carton box, wooden pallet
Material :
ABS, PC
Insertion loss :
0.15dB
Return loss :
55dB
Application :
indoor end user wall socket
Fiber port :
1* SC/UPC simplex
Ethernet port :
1* CATV port
Description

FTTH Flame Retardant Fiber Optic Distribution Box For Fiber CATV Networks Socket Face Plate

Description:

- Come with 1 SC/UPC fiber optic port and 1 CATV RF port.

- It is wallmounttable socket.
- The KCO-FOFP-SCUS-CATV Socket Panel has a compact plug-in design, combines a Integration, Multi-function, Modern design concept, adopts imported plastic,
- It is of a graceful appearance and applicable for FTTH, FTTO an FTTD, etc., and allows easy use in different installation environments
- KCO-FOFP-SCUS-CATV is used in the end termination of residential buildings and villas, to fix and splice with pigtails.
- It can be installed on wall, may adapt variety of optical connection styles, optical fiber can be managed effectively.
- Applicable for FTTH, FTTO an FTTD, etc., and allows easy use in different installation environments.
- Coordinating with FC strip-type optical adaptor, it generates more options in term of fiber interfaces for users, all SC and SC/FC are usable.
- The big-diametered wrapping post in the box protects radically in an omnibearing way..
- The clasp design of the cover has greatly reduced the installation strength.
- It is very thin and matches with other A86 panels in homes, and also meet the open or concealed cabling for optical cables.

Quick Information:

Part number KCO-FOFP-SCUS-CATV
Size 80*80*15mm
Fiber ports 1 cores for SC, 2 cores for LC
Material Plastic ABS+PC
Cable indoor cable or FTTH cable
Cable diameter Max. 3.0mm
CATV port RF connector * 1pc


Standard accessories
- Sleeve - 2 pcs
- Wall mount screws - 2 sets
- Fiber optic adapter: SC/UPC 1pc
- RF connector: 1pc

Product Photos:

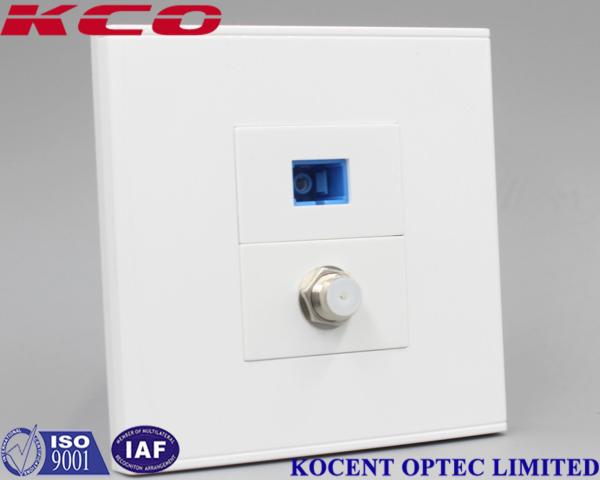

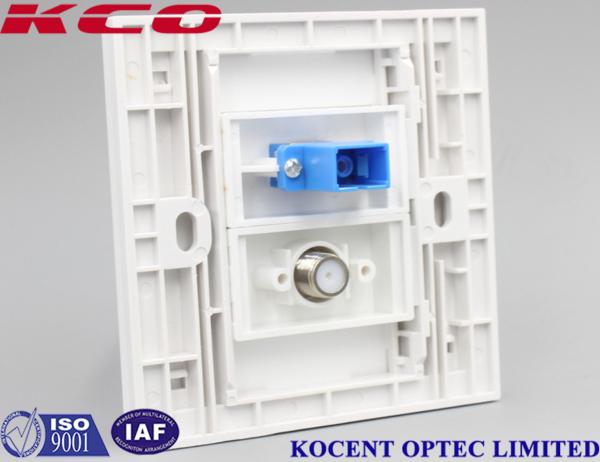

White color:
Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel

Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
Champagne color:
Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel

Features:
- KCO-FOFP-SCUS-CATV with one port of SC/UPC simplex adapter, can change to LC/UPC duplex adapter. Easier to use.
- KCO-FOFP-SCUS-CATV with one port of RF connector for CATV
- PC material, side is clip design of the box, it is more stable and solid, longer life time.
- Small size, light weight, pleasant appearance.
- Buckle type design, installation firm not easy to loosen.
- Transparent structure is easy to understand without fear of error.
- Ultrathin design. The exposed part of the wall is only 7MM.
- Panel size: 86mmx86mm; Mounting hole distance: 60mm.
- Embedded surface frame, convenient for installation and disassembly.
- With protective door, dustproof.
- Easy identification with logo.
- Applicable to multi-class modules and multimedia interfaces.
- High quality PC plastic, anti-collision, flame retardant, anti-impact.

Applications:
- Widely used in FTTH access network
- CATV networks
- Data communications networks
- Local area networks
- Telecommunication networks


Operating Conditions:
- Temperature: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss: >=50dB(UPC), >=60dB(APC)
- Insulation resistance (between frame and protection grounding): >1000MΩ/500V(DC)

Parameters:

Type Indoor fiber optic face plate
P/N KCO-FOFP-SCUS-CATV
Size 80*80*15mm
Color White, grey
Capacity Max. 2 cores
Insert loss ≤ 0.2dB
Return loss 50dB (UPC), 60dB (APC)
Durability 1000 Mating
Wavelength 850nm,1310nm,1550nm
Operating temperature -25°C~+40°C
Storage temperature -25°C~+55°C
Relative humidity ≤85%(+30°C)
Air pressure 70Kpa~106Kpa
Connector SC, FC, LC, ST, etc
Cable 0.9mm~3.0mm

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

Payment term:

Fiber Optic Socket SC UPC Port Video RF CATV Port FTTH Optical Faceplate 86mm Panel
